Tube Coupling - (WEE-R) - JIC 7/16
5.2747 € + VAT
Qty:pcs
Add to Cart

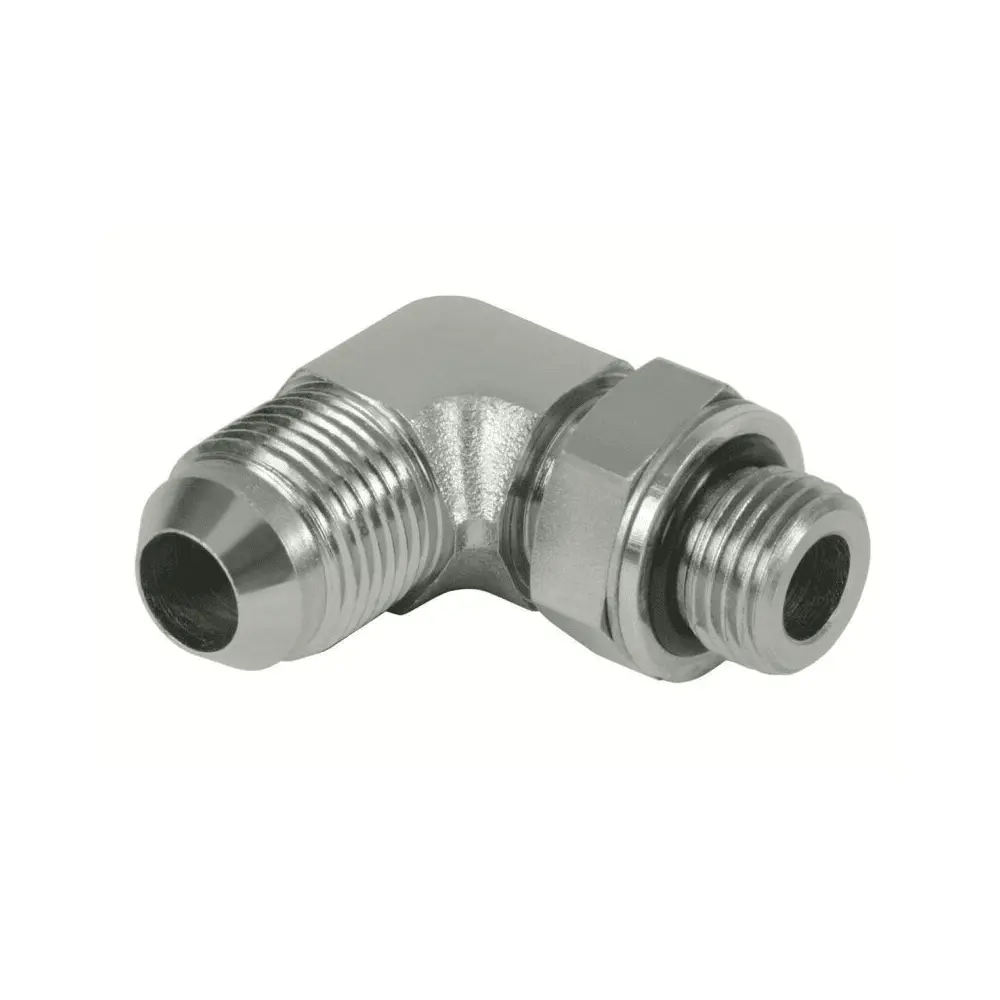

Tube Coupling - (WEE-R) - JIC 7/16"-20 - G1/4"

5.2747 € + VAT
Qty:pcs
Add to Cart

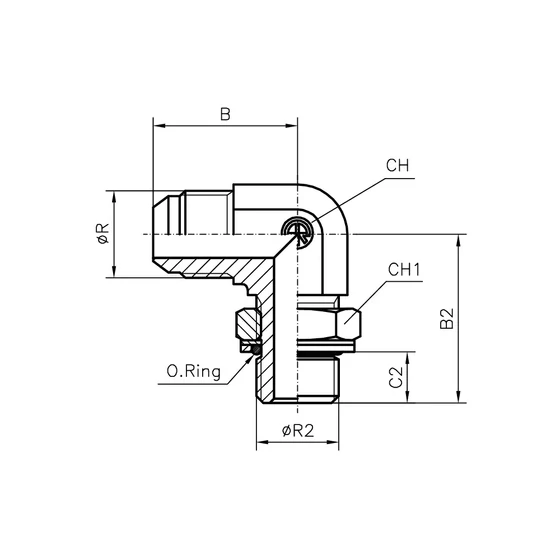

Material Steel
B2 (mm) 32
B (mm) 26.9
C2 (mm) 9.5
CH (mm) 14
CH1 (mm) 19
Connection 1 UNF external thread
Connection 2 BSPP external thread
Connection ØR (col) 7/16
Connection ØR2 (inch) 1/4
Connector sub-type UNF/BSP menet - JIC kivitel (WEE-JIC/R)
Connector type Könyök beállítható - WEE
Pipe size (mm) 6
Pipe size (inch) 1/4
Surface Galvanic coating
Structural form Adjustable Elbow Fitting - WEE, WH
Sealing 1 37° external cone
Sealing 2 O-ring
Operating pressure (bar) 350
Manufacturer article number: ST.05.04.04
Model: HQCJWEE04R040
Availability: 5 pcs in stock
Manufacturer: Nem besorolt
