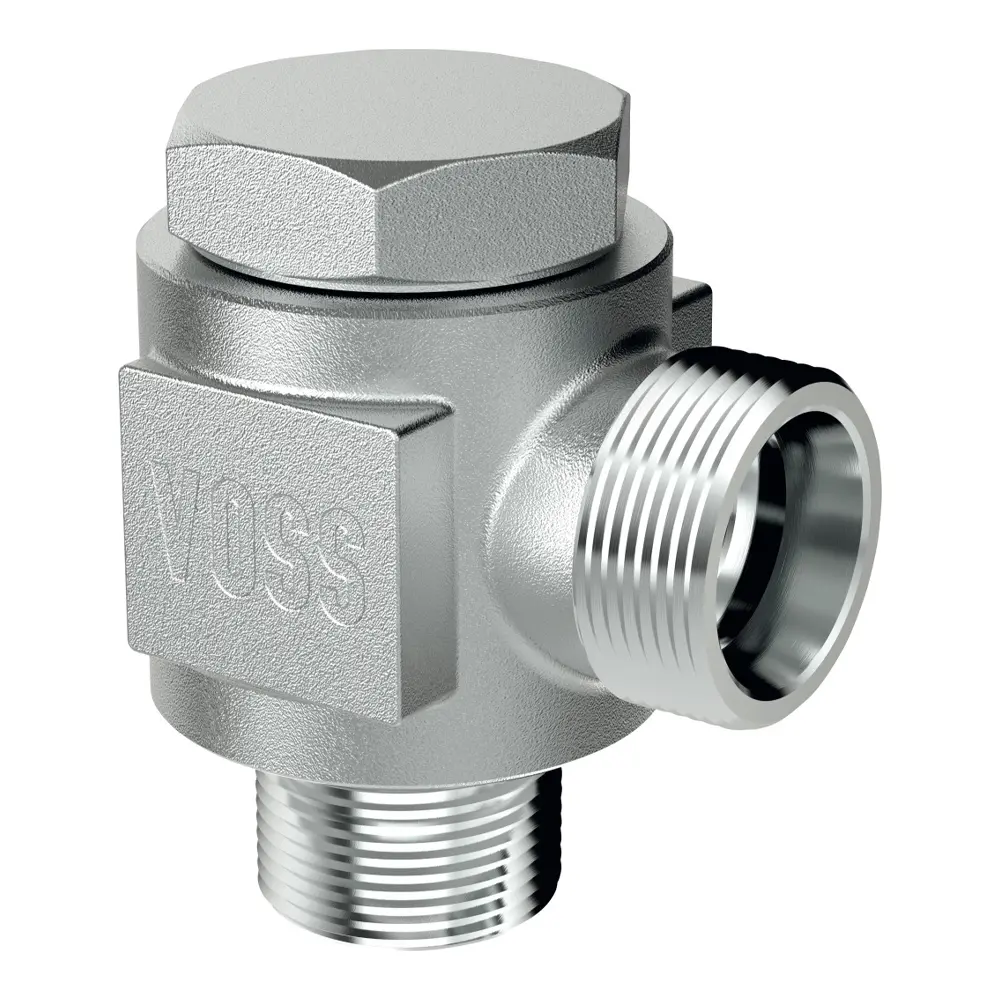

Tube Coupling - WH 08-SM
7.5352 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - WH 08-SM

7.5352 € + VAT
Qty:pcs
Add to Cart

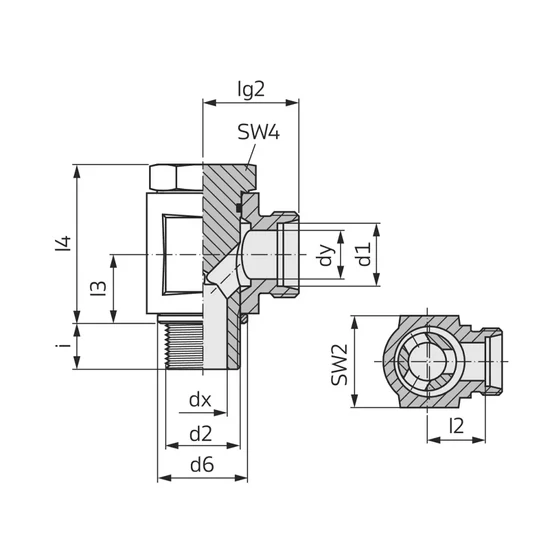

Material Steel
Connection 1 Metric external thread
Connection 2 Metric external thread
Connection G1 (mm) M16x1,5
Connection G2 (mm) M 14 x 1.5
Connector sub-type Metrikus menet - nehéz kivitel (WH-S/M)
Connector type Könyök beállítható - WH
d6 (mm) 19
Ø d1 (mm) 8
dx (mm) 5
dy (mm) 5
Surface Galvanic coating
l2 (mm) 16.5
i (mm) 12
Design S
l3 (mm) 14
l4 (mm) 31
lg2 (mm) 23.5
SW2 (mm) 22
SW4 (mm) 19
Standard DIN 2353/ISO 8434-1, ISO 9974-3
Structural form Adjustable Elbow Fitting - WEE, WH
Extent Nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 Cutting-edge sealing ring
Operating pressure (bar) 450
Manufacturer article number: 1155552007
Model: HQCWH08SM140
Availability: 8 pcs in stock
Manufacturer: Nem besorolt
