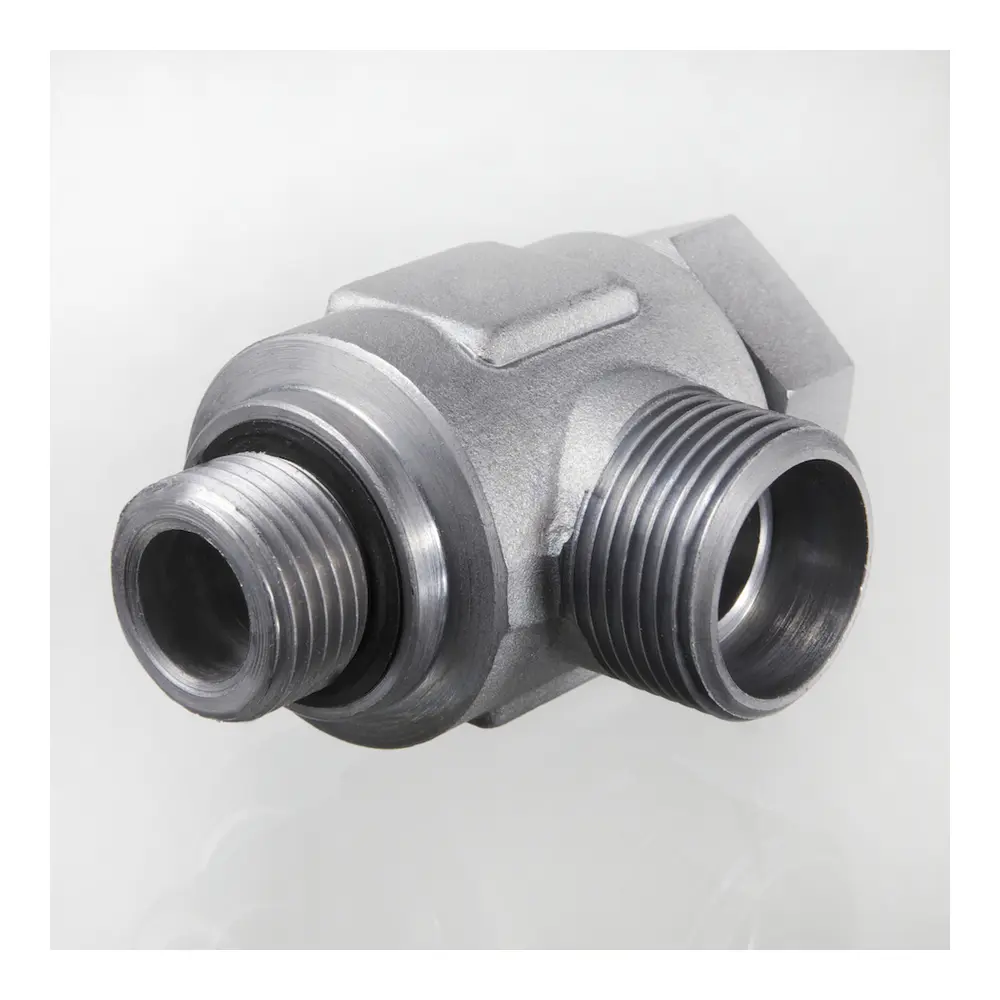

Tube Coupling - WH 12-LM
19.0892 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - WH 12-LM

19.0892 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric external thread
Connection 2 Metric external thread
Connection G1 (mm) M 16 x 1.5
Connection G2 (mm) M18x1,5
Connector sub-type Metrikus menet - könnyű kivitel (WH-L/M)
Connector type Könyök beállítható - WH

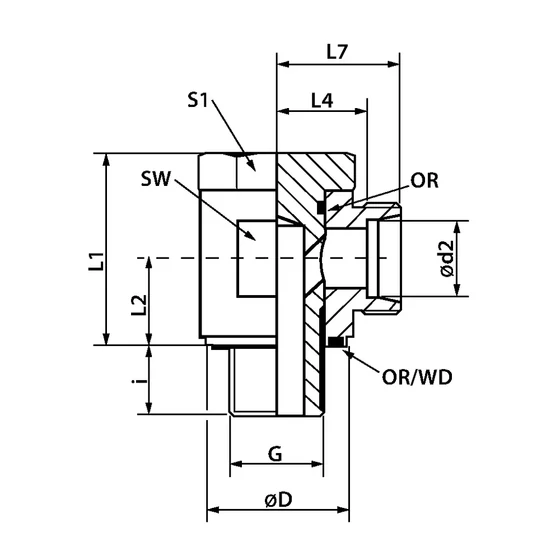

Ø d2 (mm) 12
Ø D (mm) 22.5
Surface Galvanic coating
i (mm) 12
Design L
L1 (mm) 35
L2 (mm) 16.5
L4 (mm) 18
L7 (mm) 25
S1 (mm) 24
SW (mm) 27
Standard ISO 8434-1
Structural form Adjustable Elbow Fitting - WEE, WH
Extent Nut, without cutting ring
Sealing 1 E-form
Sealing 2 24° internal cone
Operating pressure (bar) 315
Manufacturer article number: SDOMNW10HL
Model: HQCWH12LM160
Availability: 3 pcs in stock
Manufacturer: Nem besorolt
