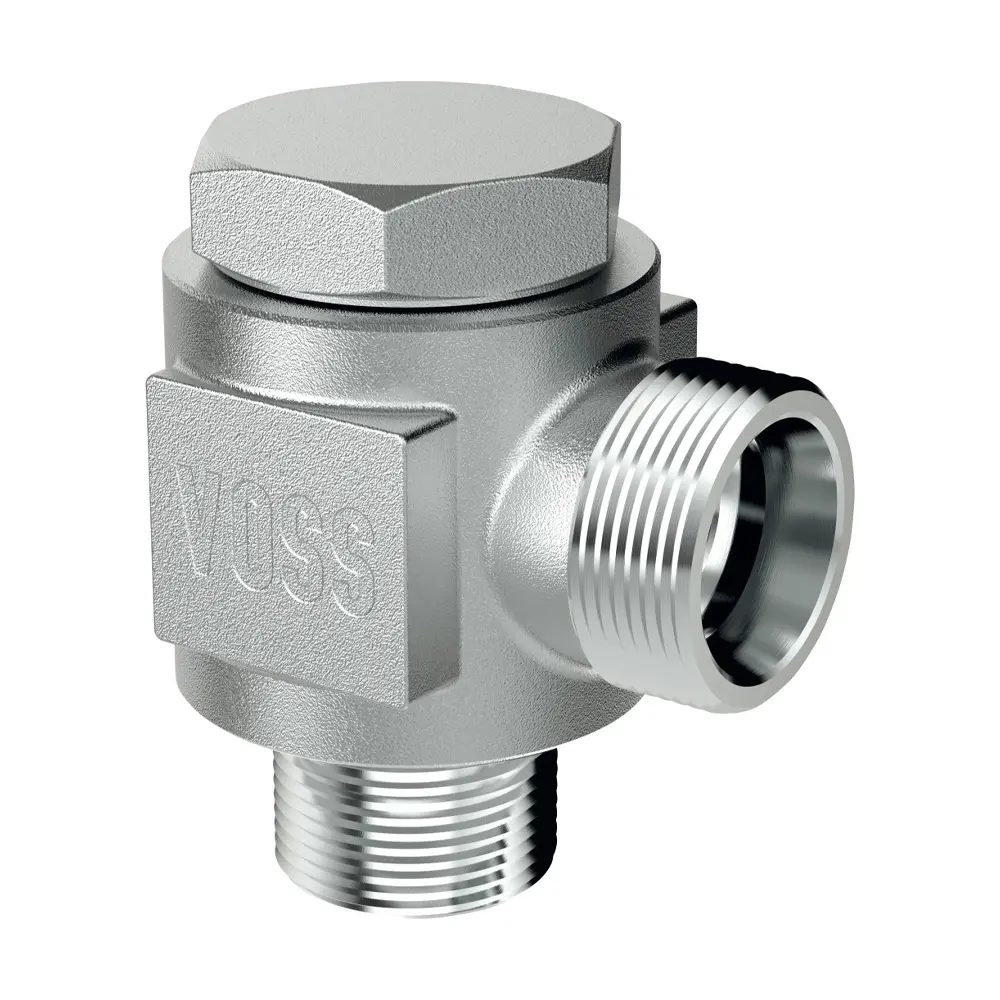

Tube Coupling - WH 25-SR
62.7935 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - WH 25-SR

62.7935 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric external thread
Connection 2 BSPP external thread
Connection G1 (mm) M36x2
Connection G2 (mm) G 1 A
Connector sub-type Metrikus/BSP menet - nehéz kivitel (WH-S/R)
Connector type Könyök beállítható - WH

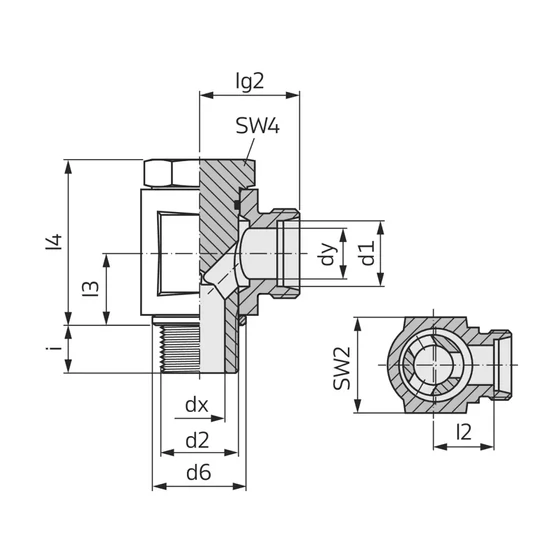

d6 (mm) 39
Ø d1 (mm) 25
dx (mm) 19
dy (mm) 20
Surface Galvanic coating
l2 (mm) 31
i (mm) 41
Design S
l3 (mm) 30.5
l4 (mm) 59
lg2 (mm) 43
SW2 (mm) 46
SW4 (mm) 41
Standard DIN 2353/ISO 8434-1
Structural form Adjustable Elbow Fitting - WEE, WH
Extent Nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 Cutting-edge sealing ring
Operating pressure (bar) 250
Manufacturer article number: 1157852007
Model: HQCWH25SR160
Availability: 3 pcs in stock
Manufacturer: Nem besorolt
