Description

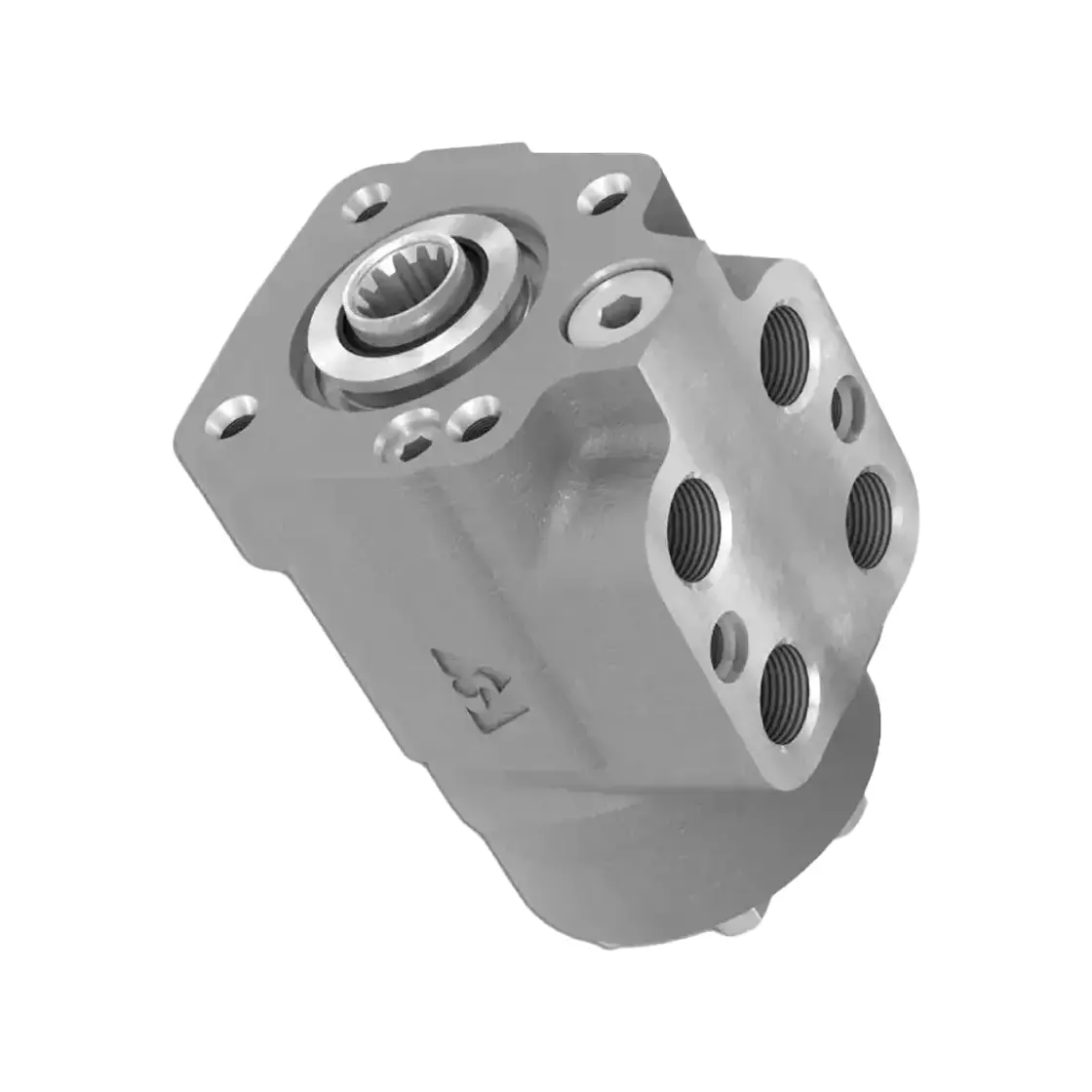

The HKUS hydrostatic steering unit is based on the HKU unit, but has built-in relief and check valves.
This results in a very compact steering unit that reduces the need for additional hydraulic components in the system.
| 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 320 | 400 | 500 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. volume (cc/rpm) | 39.6 | 49.5 | 65.6 | 79.2 | 99 | 123.8 | 158.4 | 198 | 247.5 | 316.8 | 396 | 495 |
| Max. operating pressure (bar) | 140 | 140 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 |
