Tensioner Device With Idler Hardware - SE 27

18.6151 € + VAT

Qty:pcs

Add to Cart

Model:

MKEFSE27

Availability:

1 pcs in stock

Chain Drive Tensioning: Type SE Tensioning Element

The tensioning element with the specification SE (SE 11 to SE 50) is the most commonly used unit for tensioning all types of chain and belt drives. The elastomeric inserts are based on a high elastic natural rubber with good shape memory. This unit is designed for applications in temperatures from -40° to +80°C (-40° to +180°F).

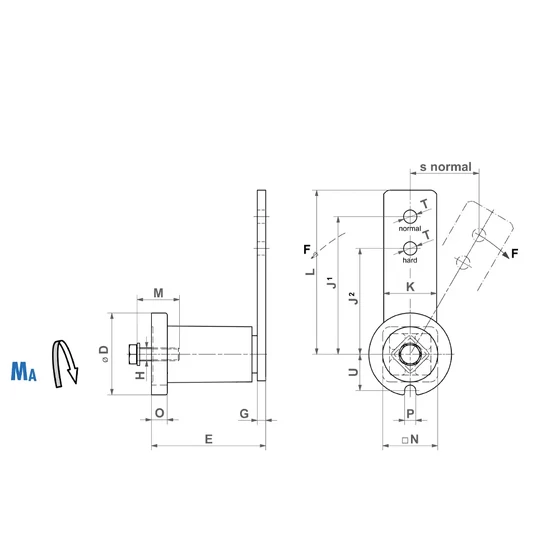

Description	Art. No.	Type	F max. with J1 [N]	F max. with J2 [N]	s max with J1 [mm]	s max with J2 [mm]	øD [mm]	E [mm]	G [mm]	H [mm]	J1 [mm]	J2 [mm]	K [mm]	L [mm]	M [mm]	N [mm]	O [mm]	P [mm]	øT [mm]	U [mm]	Weight [kg]
Tensioner Device Type SE 27	06 011 004	SE 27	810	1050	65	50	78	108	8	M12	130	100	50	155	40	52	15	10.5	12.5	34.3	1.7
