Description
Function and Design

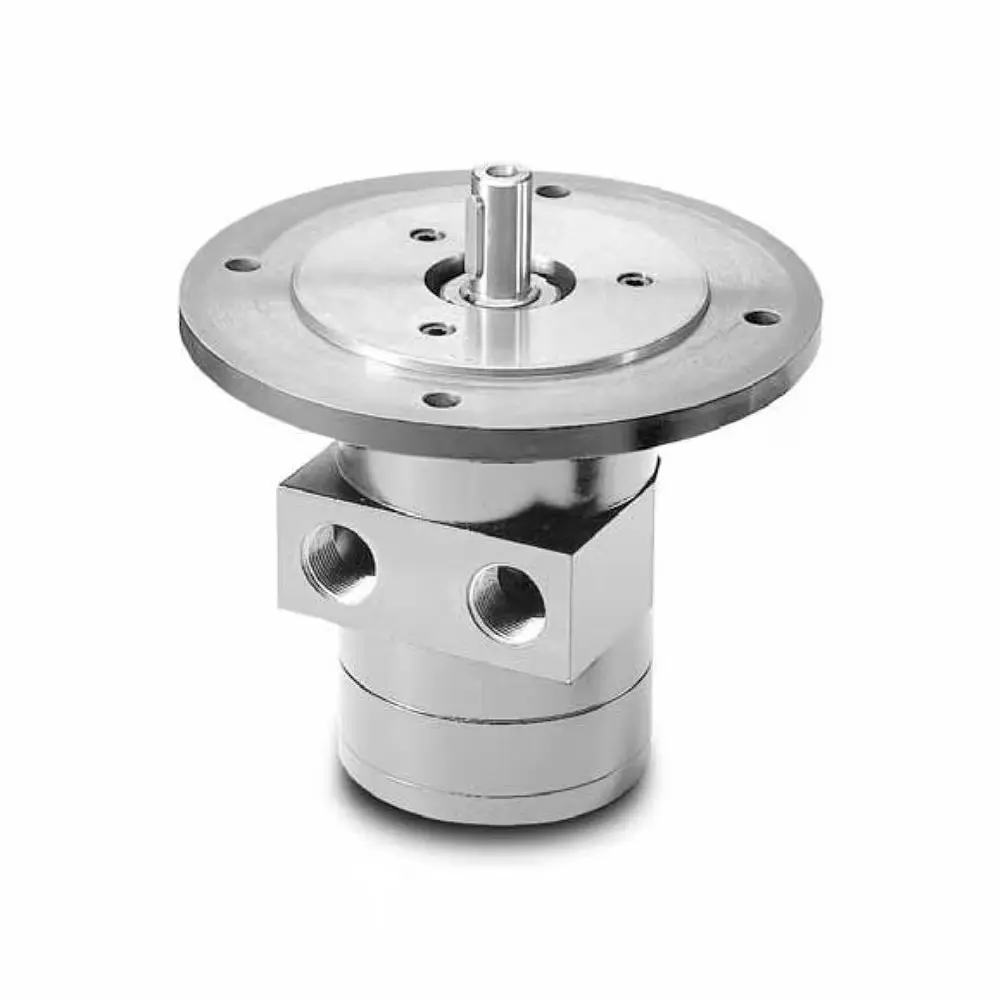

Basic motors: All pneumatic motors are equipped with spring-loaded vanes as standard, which gives the motors very good starting and low-speed running characteristics. The simple construction of the motors makes them very reliable, with long service life and they are easy to service.
Motors with planetary gears: A P1V-A combined with a planetary gear has small installation dimensions, low weight in relation to performance, free installation position, flange mounting as standard, in-line output shaft, and high efficiency. They are available with shaft speeds ranging from 190 to 600rpm, with torques ranging from 32 to 84Nm.
Motors with helical (spur) gears: A P1V-A combined with a helical gear has high efficiency, simple installation with flange or foot, and competitive pricing. They are available with shaft speeds ranging from 18 to 625rpm, with torques ranging from 24 to 2460Nm. Oil-bath gears mean that the installation position must be decided beforehand. The installation position governs the amount of oil in the gearbox and the location of the filling and drain plug.
Motors with worm gears: A P1V-A combined with a worm drive gear has the following characteristics: gearboxes with high gear ratios are self-locking, which means that they can be used to maintain the output shaft in position, simple installation with the flange on the left or right sides or with a foot, small installation dimensions, and competitive pricing. They are available with shaft speeds ranging from 37 to 350rpm, with torques ranging from 40 to 980Nm. Oil-bath gears mean that the installation position must be decided beforehand. The installation position governs the amount of oil in the gearbox and the location of the filling and drain plug.
Holding brakes: Fitted to the front of motors without gearboxes and can be ordered pre-assembled to the motor or as an optional item.
Material Specification
Motor:
- Motor housing: Cast iron with synthetic paint
- Shaft: High-grade steel
- Key: Hardened steel
- External seals: NBR (Nitrile rubber)
Planetary gearbox:
- Housing: Alloy steel with synthetic paint
- Shaft: Hardened steel
- Key: Hardened steel
- Shaft seal: NBR (Nitrile rubber)
Helical gearbox:
- Housing: Aluminium or cast iron with synthetic paint
- Shaft: Hardened steel
- Key: Hardened steel
- Shaft Seal: NBR (Nitrile rubber)
Worm gearbox:
- Housing: Aluminium or cast iron with synthetic paint
- Pinion: Cast phosphor bronze
- Worm: Alloyed, hardened steel
- Shaft Seal: NBR (Nitrile rubber)
Markets
- Factory Automation
- Machine Tools
- Printing & Marking Equipment
- Vehicle Assembly Facilities
- Mining
- Oil and Gas
Applications
- Mixers and agitators
- Power generation
- Torque generation
Features & Benefits
- Much smaller installation dimensions than corresponding electric motors.
- Can be loaded until they stall, without damage.
- Designed to withstand the toughest heat, vibration, impact, etc.
- Can be stopped and started continually without damage.
- Weight is several times less than corresponding electric motors.
- Can be used in the harshest environments.
- Simple design principle makes them very easy to service.
- Reversible as standard.
- The design and the low number of moving parts aid reliability.
- Explosion-proof and ATEX certified.
General Technical Data
- International Standards: N/A
- Nominal Power: 1600, 2600 and 3600 Watts
- Installation: Combination face and base mounting offer flexibility in application and design. Helical and worm gearboxes have oil-bath gears, meaning that the installation position must be decided beforehand. The installation position governs the amount of oil in the gearbox and the location of the filling and drain plug.
- Mounting Position: Any
Operating and Environmental Data
- Operating Medium: 40μm filtered, oil mist lubricated compressed air
- Oil operation: 1-2 drops per cubic meter, ISO8573-1 purity class 3.-.5
- Recommended oil: Foodstuffs industry Klüber oil 4 UH1- 32 N
- Operating Pressure: 3 to 7 bar maximum
- Operating Temperature: Standard temperature -10°C to +110°C
- Corrosion Resistance: High resistance to corrosion and chemicals.
- Repairable: Yes
