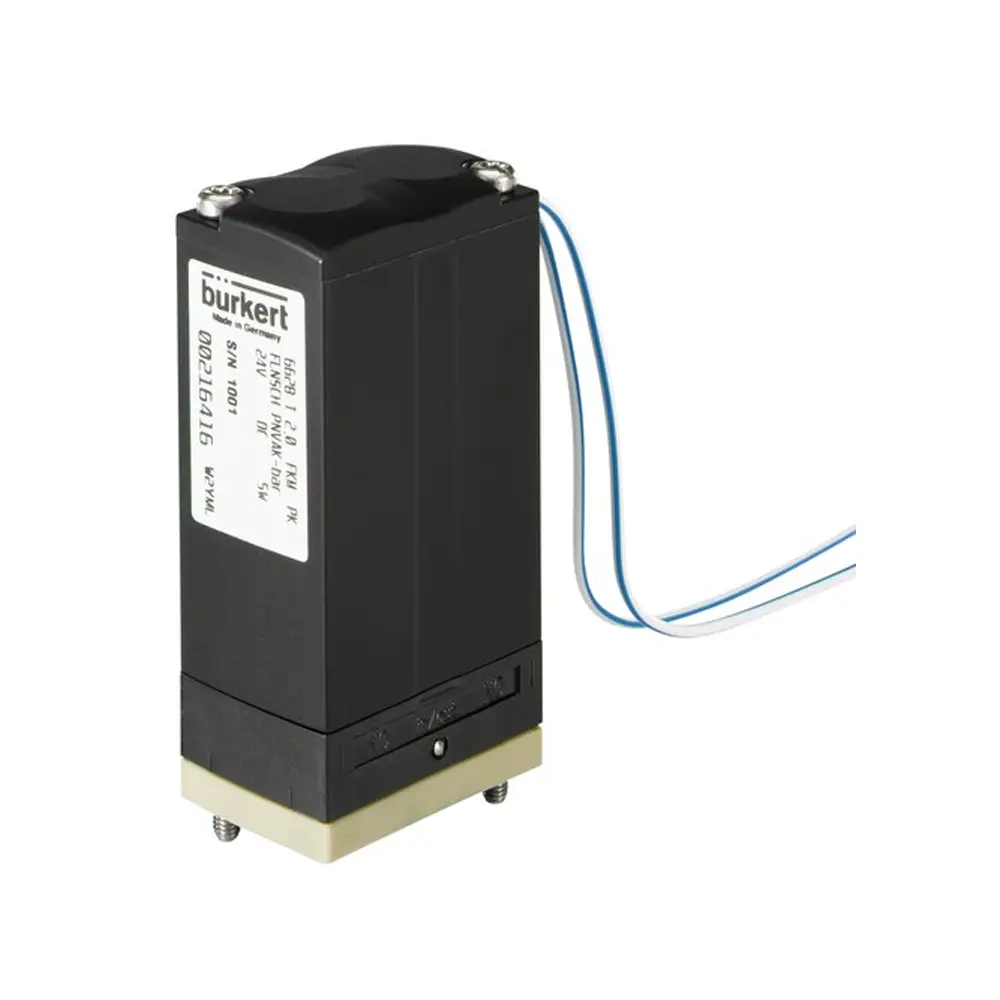

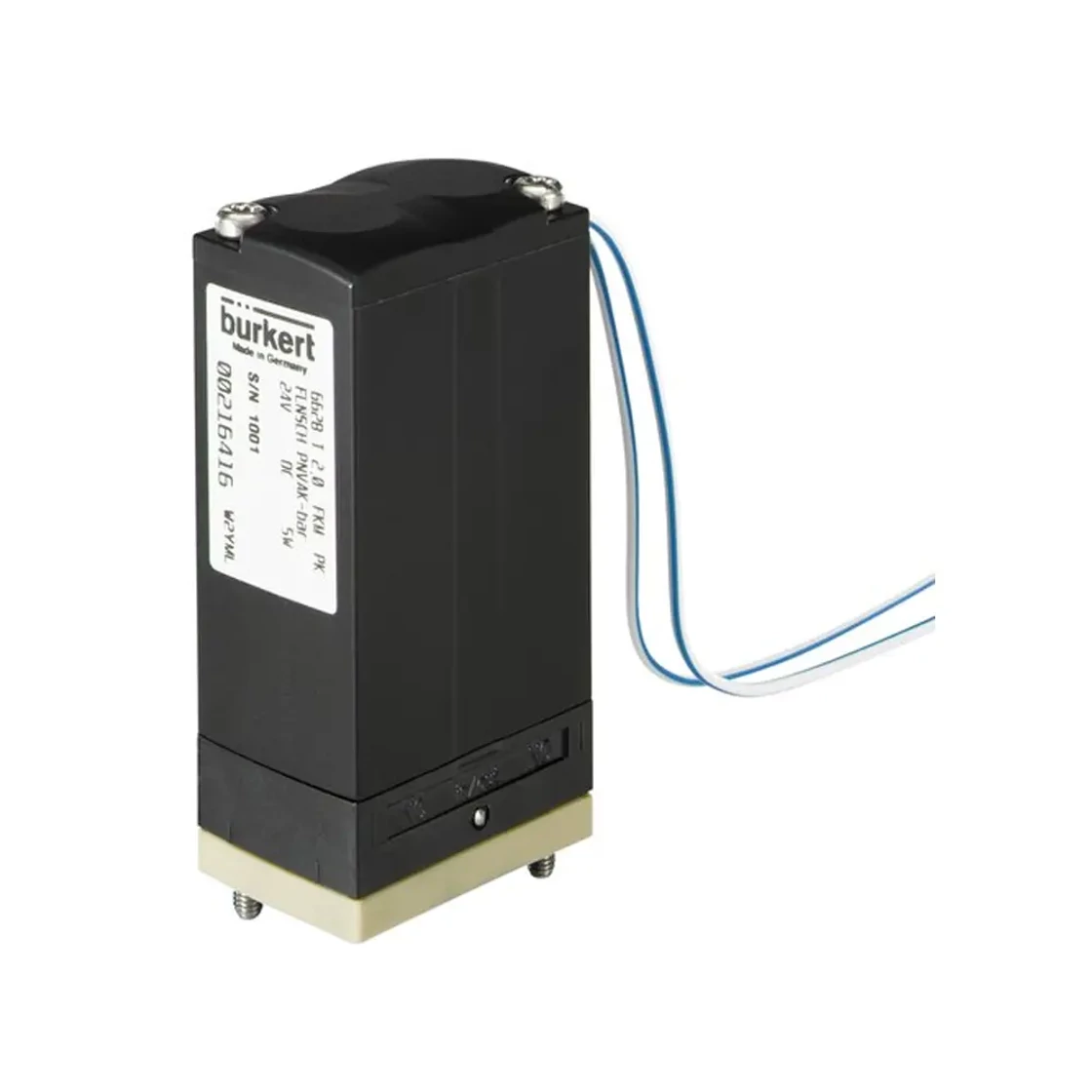

Valve - 00307449

Technical Features

This valve is a direct-acting, 2/2-way solenoid valve designed for universal use. It is particularly suited for applications where specific material standards for media contact must be met.

Technical Overview

• Valve diameter: 3.00 mm
• Nominal pressure: -1.00 bar to 2.00 bar
• Differential pressure max: 2 bar
• Medium temperature: -10.00 °C to 55.00 °C
• Environmental temperature: -10.00 °C to 55.00 °C
• Valve function: T - for universal use (port connections 1 (P/NC), 2 (A/in/out) and 3 (R/NO) depending on application)
• Actuator type: Direct-acting
• Control voltage: 24.00 V DC
• Fluidics body material: PEEK (Polyetheretherketone)
• Seat seal material: EPDM (Ethylene-propylene-diene rubber)
• Kv value (water): 0.17 m³/h
• QNn value (gas): 180 l/min
• Switch time (open/close): 25 ms
• Approvals: Material-approval-foods, Food - FDA-compliant

Detailed Features

• Switching function

  • Fluidic port connection number: 3
  • Valve function number of switching positions: 2
  • Manual actuation: Yes

• Process/port connection

  • Port connection 1 type: Inner thread
  • Port connection 1 thread marking: 1/8
  • Port connection 1 thread type: G

• Voltage

  • Voltage min / rated voltage: 24 V
  • Voltage max / rated voltage: 24 V
  • AC voltage: No
  • DC voltage: Yes

• Device properties

  • Type: 6628
  • Actuator type: Rocker
  • Media separation: Yes
  • Valve construction: Valve complete
  • Switch function: on/off
  • Power reduction integrated: No

• Electrical connection

  • Electrical connection sort: Plug pattern form B according to industrial standard
  • Cable plug in delivery: Not included
