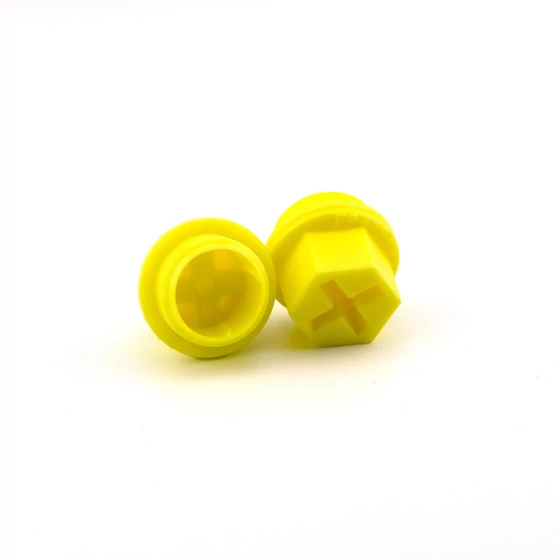

Description of the pipe fitting protective cap
Features:
- Protective design: The purpose of the pipe fitting protective caps is to protect fittings during transport, storage, or assembly.
- Plastic material: They are typically made from flexible, durable plastic, allowing them to fit tightly onto fittings and protect them from environmental effects.
- Various sizes and shapes: Available in different sizes and shapes to fit various types and sizes of fittings.
Advantages:
- Protection against contamination: Prevent contamination, dust, and other foreign materials from entering the fittings, resulting in longer service life and less maintenance.
- Prevention of damage: Protect fittings from physical damage, such as impacts or scratches.
- Easy installation and removal: Can be easily applied and removed, offering convenient usage.
Applications:
- Hydraulic and pneumatic systems: Ideal for protecting hydraulic and pneumatic fittings during transport, storage, and installation.
- Workshops and manufacturing plants: Useful in workshops and manufacturing plants where maintaining the cleanliness of fittings is crucial during assembly processes.
- Maintenance and repair: Can be used during maintenance and repair work to prevent contaminants from entering the system.
Size chart of the pipe fitting protective cap
Click on the article number to view the price and stock availability of the selected product.
Article number |
F |
A |
B |
C |
D |
kg |
NBTFG18000 | 1/8" | 17 | 13 | 11 | 8 | 0.001 |
NBTFG14000 | 1/4" | 19 | 13 | 10 | 8 | 0.002 |
NBTFG38000 | 3/8" | 22 | 17 | 11 | 9 | 0.004 |
NBTFG12000 | 1/2" | 27 | 19 | 14 | 11 | 0.005 |
NBTFG34000 | 3/4" | 32 | 24 | 14 | 11 | 0.007 |
NBTFG01000 | 1" | 40 | 27 | 18 | 11 | 0.010 |
Article number |
F |
A |
B |
C |
D |
kg |
NBTFM14150 | M14x1.5 | 19 | 13 | 12 | 8 | 0.002 |
NBTFM16150 | M16x1.5 | 22 | 17 | 12 | 8 | 0.003 |
NBTFM18150 | M18x1.5 | 24 | 17 | 12 | 9 | 0.004 |
NBTFM20150 | M20x1.5 | 26 | 19 | 12 | 12 | 0.005 |
NBTFM22150 | M22x1.5 | 27 | 19 | 12 | 12 | 0.005 |
