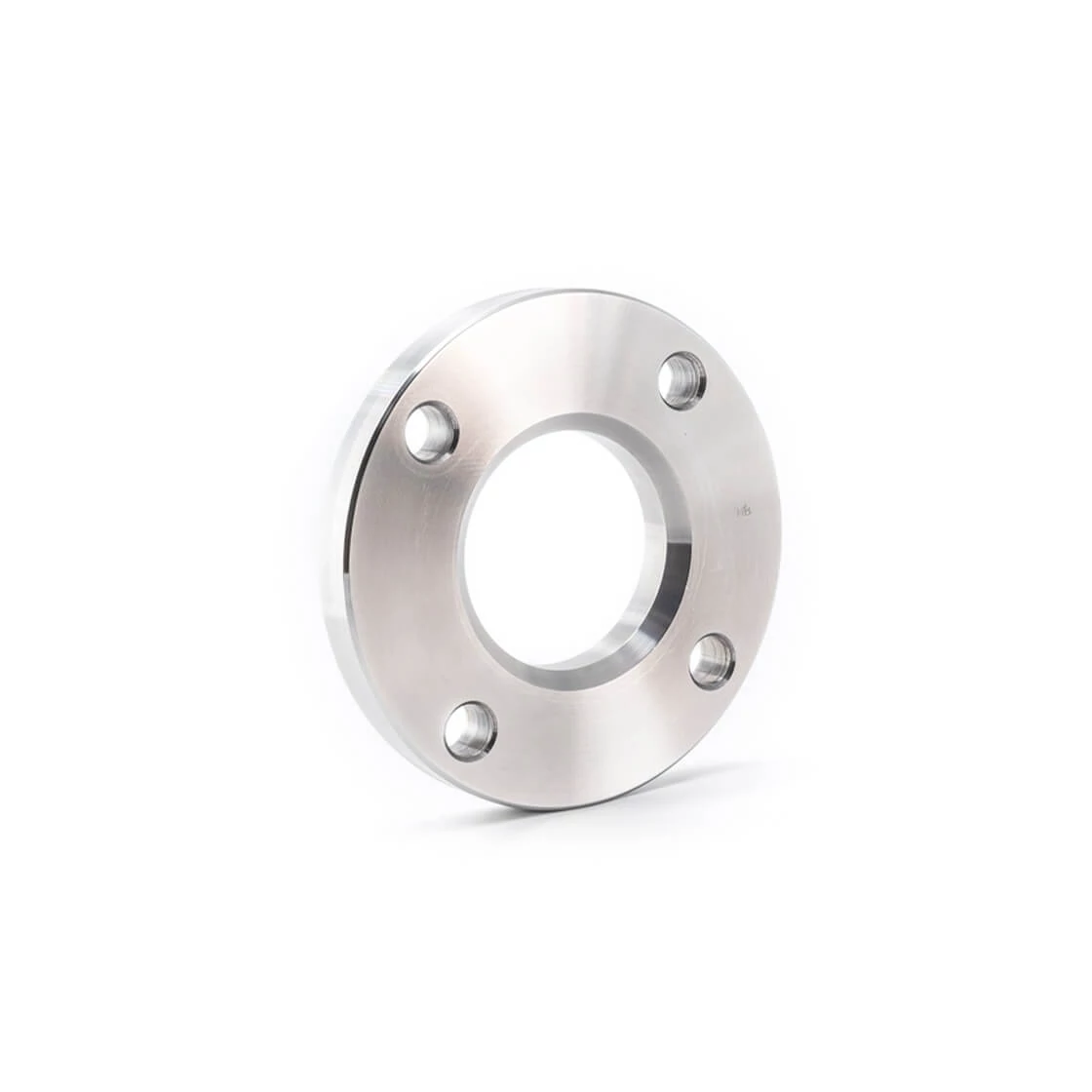

Flange with 4-holes - NBFLA0142070

Flange with 4-holes - NBFLA0142070

Type Galléros / Collar
Inner diameter 70 mm
Manufacturer article number: NBFLA0142070
Model: NLF0700000
Availability: Available to order
Manufacturer: --
Description and Size Chart

Description

Description of the perforated cylinder collar
  • The cylinder collar is available in 4- and 6-hole versions.
  • Material: S355JR - ASTM A105 steel.
Size chart of the perforated cylinder collar

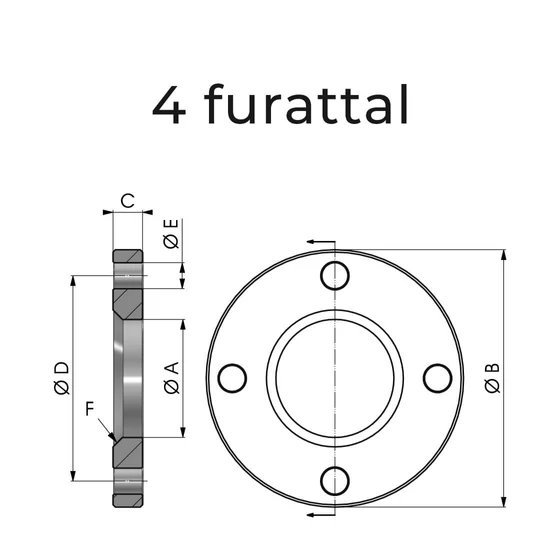

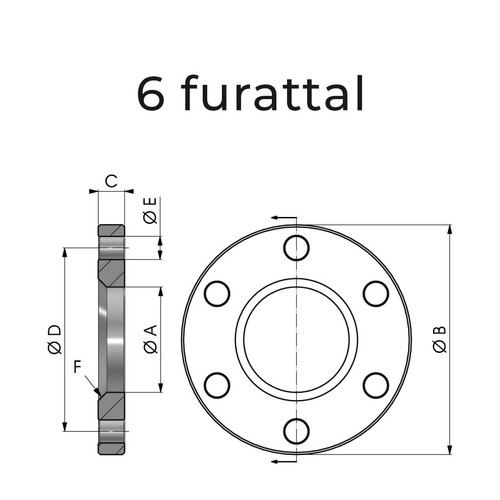

Size diagram of the 4-hole cylinder collar Size diagram of the 6-hole cylinder collar

Click on the item number to view the price and stock availability of the selected product.

4 holes
Item number A B C D E F kg
NLF0500000 50 109 12.5 87 4xØ11 4x45º 0.66
NLF0600000 60 128 14.5 105 4xØ13 4x45º 1.06
NLF0700000 70 142 16.5 117 4xØ13 5x45º 1.44
NLF0800000 80 162 16.5 127 4xØ15 5x45º 1.87
6 holes
Item number A B C D E F kg
NLF0920000 92 181 18.5 149 6xØ17 7x45º 2.49
NLF0950000 95 181 18.5 149 6xØ17 7x45º 2.40
NLF1150000 115 194 24.5 162 6xØ17 8x45º 3.28
