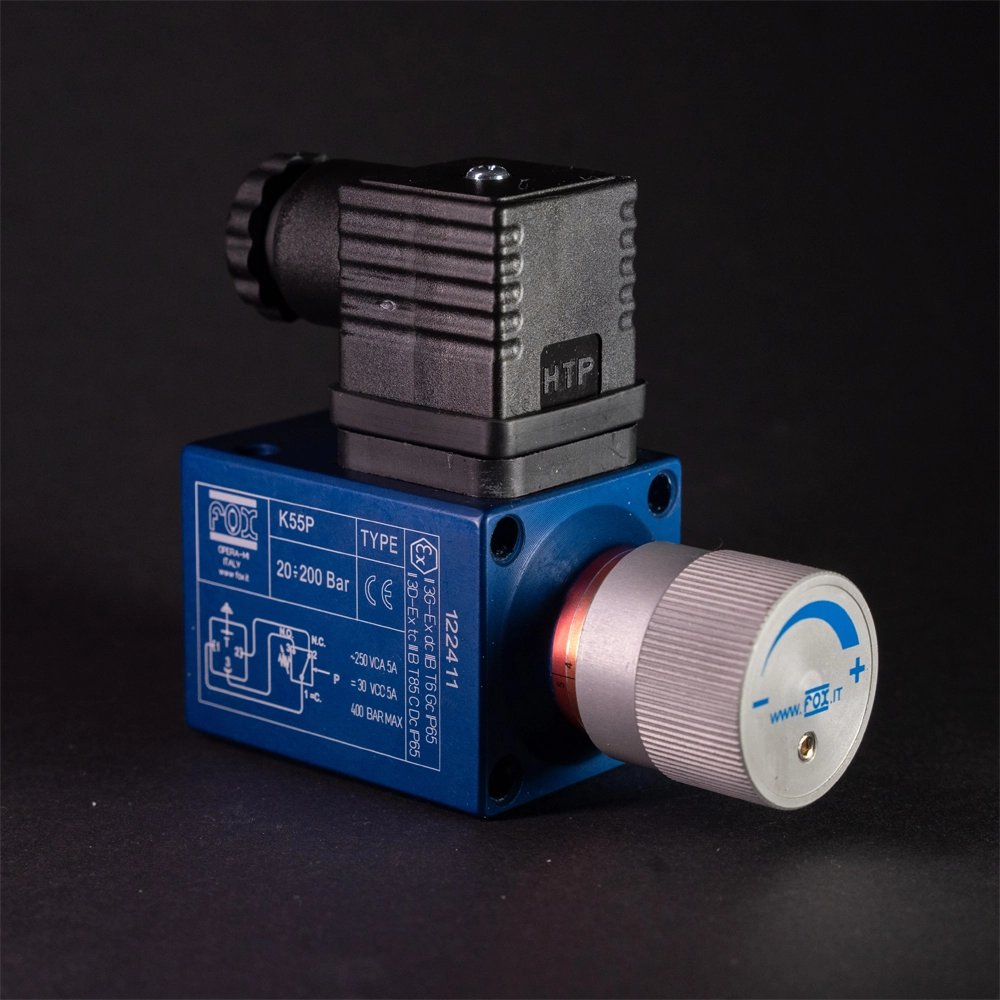

Description
| Operating temperature | -25°C ÷ +85°C |
|---|---|
| Switching frequency | 120 cycles per minute |
| Setpoint | with internal screw or knob adjustable, fixing screw |
| Switching accuracy | ±2% at the end of the scale at 20°C |
| Fixed hysteresis value | ~15% at the end of the scale at 20°C |
| weight | 0.30 kg |
| Mechanical life | 10^6 cycles at 70 bar (1000 PSI) at 20°C |
Electrical characteristics:
- Maximum Load: 5 A 250 VAC, 0.25 A 125 VDC
- Replacement Switches (Common, NO and NC) – SPDT
- Electrical connection according to DIN43650, M3 and M4
- Electrical connection according to IEC60947-5-2, M12
- Electrical protection according to DIN40050, IP65
- ATEX Certification: ATEX II 3G Ex nc IIB T6 Gc IP65
House:
40x40mm square made of anodized aluminum
Installation:
In any position with 1/4" BSP-F threaded port or Cetop flange without adapters
