Description
- Operating temperature: -20°C ÷ +80°C
- Non-performance + hysteresis: < 1% at the end of the scale at 20°C
- Zero temperature drift: < 3% at the end of the scale from 0°C to +70°C
- Weight: 0.1 kg
- Mechanical life: 2x106 cycles at 20°C
- Housing: stainless steel AISI 316, direct parts stainless steel AISI 316, ceramic sensor and NBR gasket
- Hydraulic connection: threaded male connector with integrated ISO seal
Electrical characteristics:
- Power supply standard designs:
- 4-20 mA à 2 wires: 9-28V DC
- 0-10V à 3 wires: 9-28V DC

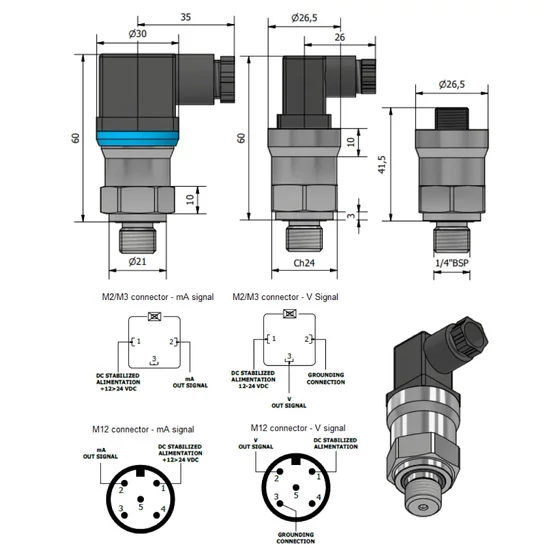

- Electrical connection according to DIN43650, M2 and M3
- Electrical protection according to CEI EN 60529, IP65
- Electrical connection according to IEC60947-5-2, M12
- Electrical protection according to CEI EN 60529, IP67
- Input Impedance: 100 Ohm
