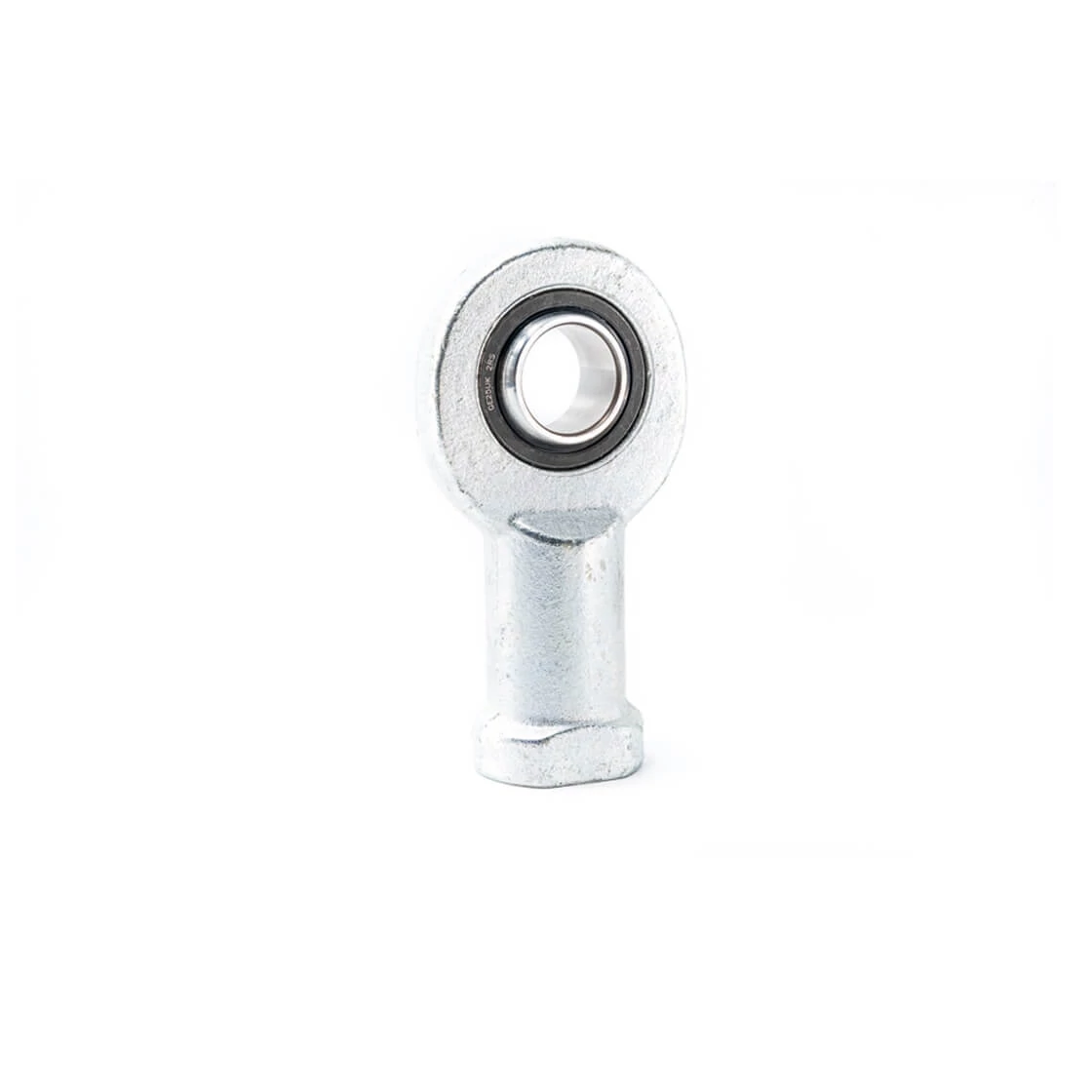

Ball joint end - NBSC80UK2RS

Ball joint end - NBSC80UK2RS

Type Rod end
Inner diameter 80 mm
Thread size M64 x 4
Manufacturer article number: NBSC80UK2RS
Model: NRM080UK2C
Availability: Available to order
Manufacturer: --
Description and Size Chart

Description

Description of the SC..UK 2RS Type Threaded Rod End
  • The SC..UK 2RS type rod end features an external thread, which ensures easy connection and adjustability in hydraulic systems or other applications.
  • Thanks to its maintenance-free design, no regular lubrication is required, reducing operational costs.
  • The rod end is sealed on both sides, preventing contamination and ensuring the cleanliness of the lubricant.
  • Its C45 galvanized steel construction guarantees the durability of the product.
Size Chart of the SC..UK 2RS Type Threaded Rod End

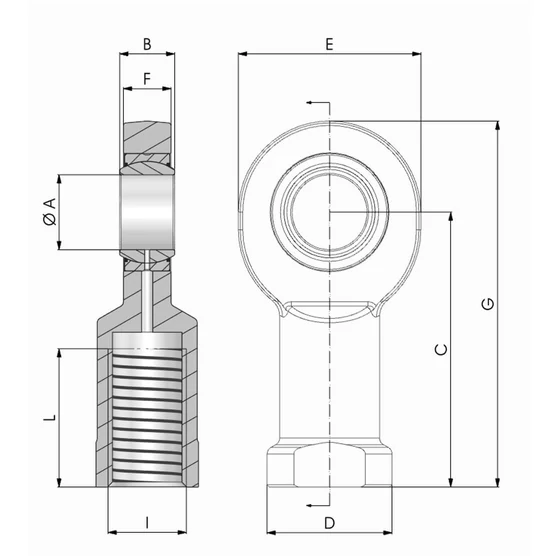

Dimensional drawing of the SC..UK 2RS type threaded rod end

Click on the item number to view the price and stock availability of the selected product.

Item Number A B C D E F G I L CDA kg
NRM035UK2C 35 25 125 58 82 21 166 M36x3 60 112 1,30
NRM040UK2C 40 28 142 65 92 23 188 M39x3 67 140 2,01
NRM045UK2C 45 32 145 70 102 27 196 M42x3 65 180 2,50
NRM050UK2C 50 35 160 75 112 30 216 M45x3 69 220 3,50
NRM060UK2C 60 44 175 88 135 38 242 M52x3 73 345 5,50
NRM070UK2C 70 49 200 98 160 42 280 M56x4 80 440 8,60
NRM080UK2C 80 55 230 110 180 47 320 M64x4 85 570 12,00


CDA: Maximum dynamic load
