Ball joint end - NBSD45ES2RS

Ball joint end - NBSD45ES2RS

Type Rod end
Inner diameter 45 mm
Thread size M42 x 3
Manufacturer article number: NBSD45ES2RS
Model: NRM045ES2D
Availability: 3 pcs in stock
Manufacturer: --
Description and Size Chart

Description

Description of the SD..ES 2RS Type External Threaded Rod End
  • The external threaded rod end – SD..ES 2RS design enables precise guidance of linear movements and description of rotary movements as well.
  • The rod end is made of galvanized steel (C45).
  • The rod end requires maintenance and is re-lubricable through a lubrication hole located in the housing and shaft.
Size Chart of the SD..ES 2RS Type External Threaded Rod End

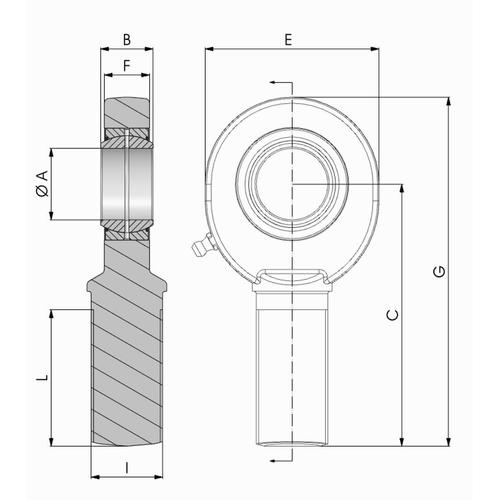

Dimensional drawing of the SD..ES 2RS type external threaded rod end

Click on the item number to view the price and stock availability of the selected product.

Item Number A B C E F G I L CDA kg
NRM035ES2D 35 25 140 82 21 181 M36x3 82 80 1,40
NRM040ES2D 40 28 150 92 23 196 M39x3 86 100 1,80
NRM045ES2D 45 32 163 102 27 214 M42x3 94 127 2,60
NRM050ES2D 50 35 185 112 30 241 M45x3 106 156 3,40
NRM060ES2D 60 44 210 135 38 277,5 M52x3 115 245 5,90
NRM070ES2D 70 49 235 160 42 315 M56x4 125 315 8,20
NRM080ES2D 80 55 270 180 47 360 M64x4 140 400 12,00


CDA: Maximum dynamic load
