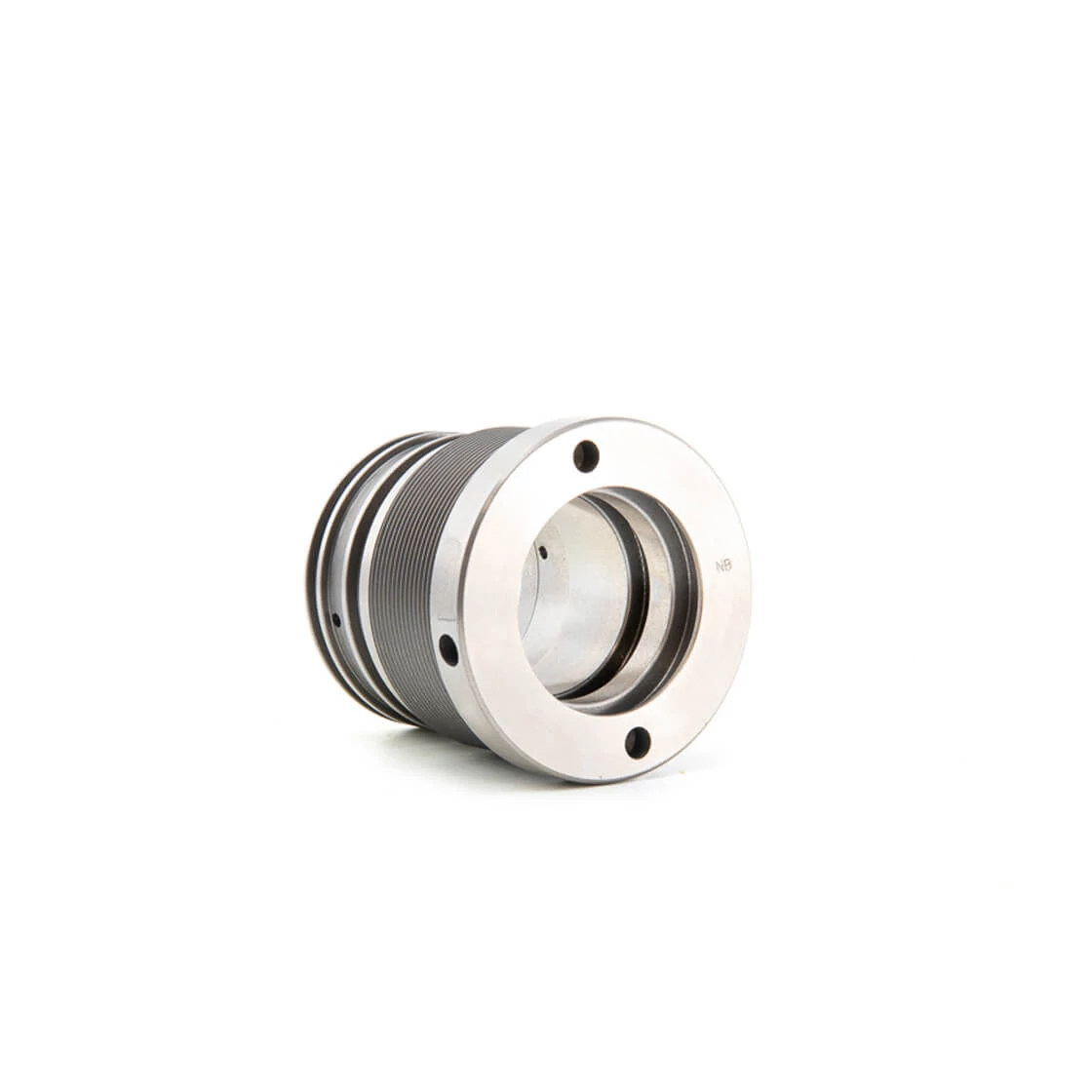

Cushioning head - NBTF07008040

Cushioning head - NBTF07008040

Maximum pressure 250 bar
Rod Guide Type With Cushioning version
Pipe outer diameter 79 mm
Rod diameter 40 mm
Rod Guide Length 63 mm
Pipe inner diameter 70 mm
Manufacturer article number: NBTF07008040
Model: NV07008040
Availability: Available to order
Manufacturer: --
Description and Size Chart

Description

Description of the Piston Rod Guide with Cushioning
  • The hydraulic cylinder piston rod guide with cushioning is specifically designed to dampen the motion of the piston within the hydraulic cylinder in order to minimize impact and reduce noise, as well as to prevent potential damage caused by high-speed and heavy mass movements.
  • The rod guide is a critical component of the hydraulic cylinder, and this cushioning feature enhances the cylinder and system's lifespan by reducing vibration and absorbing shock energy.
  • The cushioning-type rod guide is made of cast iron and is capable of withstanding a maximum pressure of 250 bar.
Size Chart of the Piston Rod Guide with Cushioning

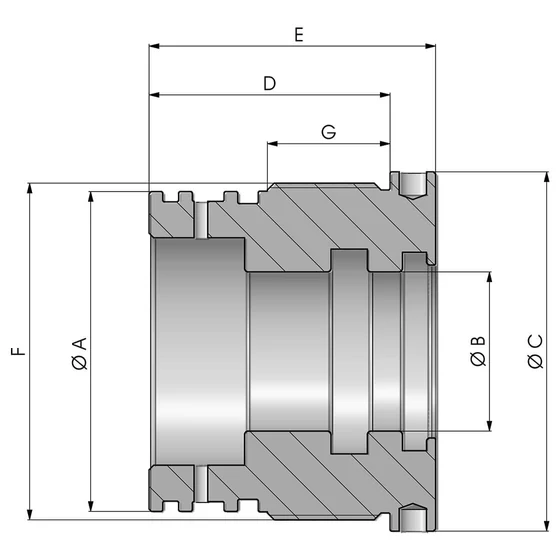

Size diagram of the piston rod guide with cushioning

Click on the item number to view the price and stock availability of the selected product.

Item number A B C D E F G kg
NV04005020 40 20 49 45 53 M44x1.5 19 0,31
NV04005025 40 25 49 45 53 M44x1.5 19 0,26
NV05006025 50 25 59 48 56 M54x1.5 22 0,52
NV05006030 50 30 59 48 56 M54x1.5 22 0,46
NV06007030 60 30 69 53 63 M64x1.5 27 0,84
NV06007035 60 35 69 53 63 M64x1.5 27 0,75
NV06007040 60 40 69 53 63 M64x1.5 27 0,67
NV06307330 63 30 73 53 63 M68x1.5 25 0,97
NV06307335 63 35 73 53 63 M68x1.5 25 0,88
NV06307340 63 40 73 53 63 M68x1.5 25 0,80
NV07008030 70 30 79 53 63 M74x1.5 27 1,22
NV07008035 70 35 79 53 63 M74x1.5 27 1,12
NV07008040 70 40 79 53 63 M74x1.5 27 1,01
NV07008045 70 45 79 53 63 M74x1.5 27 0,92
NV08009235 80 35 92 63 73 M85x2 33 1,95
NV08009240 80 40 92 63 73 M85x2 33 1,78
NV08009245 80 45 92 63 73 M85x2 33 1,67
NV08009250 80 50 92 63 73 M85x2 33 1,53
NV09010540 90 40 104 63 73 M95x2 33 2,34
NV09010545 90 45 104 63 73 M95x2 33 2,18
NV09010550 90 50 104 63 73 M95x2 33 2,08
NV09010560 90 60 104 63 73 M95x2 33 1,69
NV10011540 100 40 114 83 95 M105x2 51 4,08
NV10011545 100 45 114 83 95 M105x2 51 3,92
NV10011550 100 50 114 83 95 M105x2 51 3,75
NV10011560 100 60 114 83 95 M105x2 51 3,24
