Description
Description

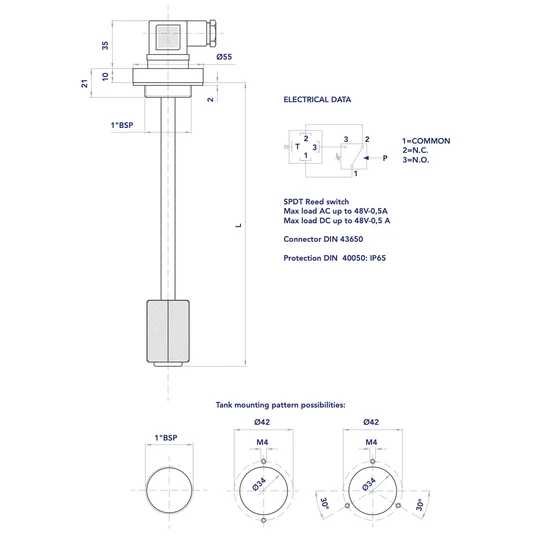

Float switches
Materials
- Tank connection: Anodized aluminum
- Rod: Stainless steel
- Float: Polyamide
Electrical Data
- SPDT Reed switch
- Max load AC: 48 V - 0.5 A
- Max load DC: 48 V - 0.5 A
- Connector: DIN 43650
- Protection: DIN 40050: IP 65
Operation
An electrical signal is activated when the minimum (or maximum) oil level is reached. The REED switch is equipped with SPDT contacts. Note: The float switch must be installed at least 50 mm away from steel walls. Max oil viscosity: 150 cSt.
Operating Temperature
From -10°C to 90°C
Compatibility
Fully compatible with HH-HL-HM-HV-HTG fluids (according to ISO 6743/4).
