Tube Coupling RI (K-B) G3/4
8.9489 € + VAT
Qty:pcs
Add to Cart

Tube Coupling RI (K-B) G3/4"-G1"

8.9489 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 BSPP male thread
Connection 2 BSPP female thread
Connection G1 (mm) G 3/4" -14
Connection G2 (mm) G 1" -11
Connector sub-type BSP külső/belső menet (RI) (K-B)
Connector type Váltó, szűkítő - RI

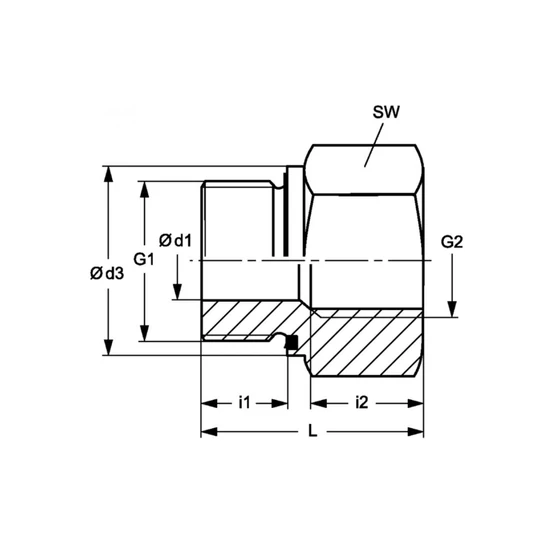

Ø d3 (mm) 31.9
Ø d1 (mm) 16
Surface Galvanic coating
i1 (mm) 16
i2 (mm) 24.5
L (mm) 51
SW (mm) 41
Structural form Reducer/Changing Adapter - RI
Sealing 1 60° internal cone, E-form
Sealing 2 Flat sealing
Operating pressure (bar) 315
Main category Csatlakozók
SubCategory Csavarzatok
Manufacturer Nincs
Manufacturer article number: RILNW2025ED
Model: HQCRRR12160
Availability: 6 pcs in stock
Manufacturer: Nem besorolt
