Description
- Filter Element: 20QI Microglass
- Seal Material: Nitrile
- Maximum Differential Pressure: 25 bar on ECO-core (ISO 2941)
- Filter Element Type: Eco element for reusable ECO-core in the filter housing
- Length: 2
- Micron Rating: 20 µm
- Filter Housing Series: EPF4
- Seal Material: Nitrile

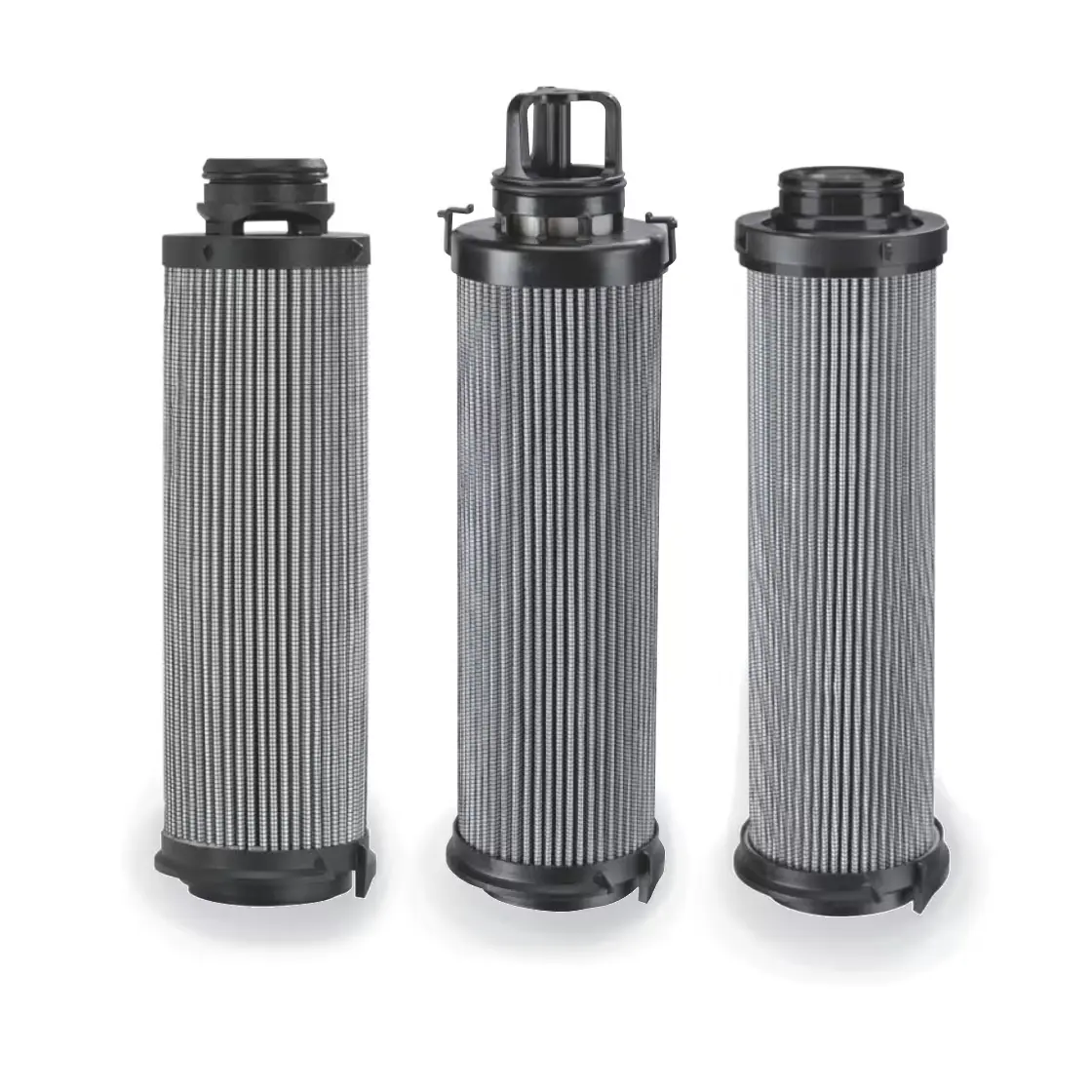

The EPF series replacement elements are designed for high-pressure in-line hydraulic oil filtration. They are available in single or double length configurations with filtration fineness down to 2 microns. The elements help protect critical engine components such as valves, bearings, cylinders, and pumps from contaminants that can cause increased wear, shorter maintenance intervals, increased downtime, and higher costs. These elements are suitable for use in extremely demanding environments, including construction, oil and gas, agriculture, and mining.
Patented Eco-Friendly Design
EPF series replacement elements feature a patented eco-friendly design that enables the bypass valve and element core to be integrated as reusable components within the filter housing. This can reduce waste and disposal costs by up to 50%. The EPF series is ideal for integrating filters into distribution systems without the need for additional drilling to install a bypass valve.
Filter Media Options
Various filter media options are available to meet customers’ specific system requirements, including microglass (QI), high-strength microglass (QIH), and reverse-flow microglass (QIR). Several filter housing sizes are also available depending on rated flow and connection type.
Compatibility with Hydraulic Fluids
EPF series filter replacement elements are compatible with a wide range of hydraulic fluids, including:
- Hydraulic mineral oils class H HLPD (according to DIN 51524)
- Operating fluids (according to DIN ISO 2943)
- Lubricants (according to ISO 6743, APJ, DIN 51517, ACEA, ASTM)
- Vegetable oils
- 60/40 water-glycol mixtures
- Industrial-grade phosphate esters (upon request)
- Non-aggressive synthetic oils
- Non-aggressive biodegradable oils (HETG, HEPG, and HEES according to VDMA 24568)
Markets:
- Agriculture
- Construction
- Oil & Gas
- Marine
- Mining
- Material Handling
Applications:
- Onboard and mobile cranes
- Firefighting equipment
- Feed units
- Hydraulic presses
- Marine steering systems
- Power units
- Excavators
- Harvesters
- Waste balers
- Loaders
- Wheel loaders
- Drilling rigs
- Industrial power supply units
- Wind turbines
Benefits:
- Prevents contaminants such as dirt, sand, dust, metal particles, etc. from entering hydraulic circuits
- Extends time between maintenance intervals, reduces operating costs, and increases the service life of all equipment and machinery
- Patented eco-friendly design allows the bypass valve and element core to be reused as part of the filter housing, reducing waste and disposal costs by up to 50%
- The filter element remains inside the housing during replacement, saving more than 500 mm of space compared to conventional high-pressure filters
Features:
- Flow rate up to 700 L/min (185 GPM)
- Maximum allowable operating pressure: 6,500 psi (450 bar)
- Available in single or double length configurations
- Various filter media types available, including microglass, high-strength microglass, or reverse-flow microglass
