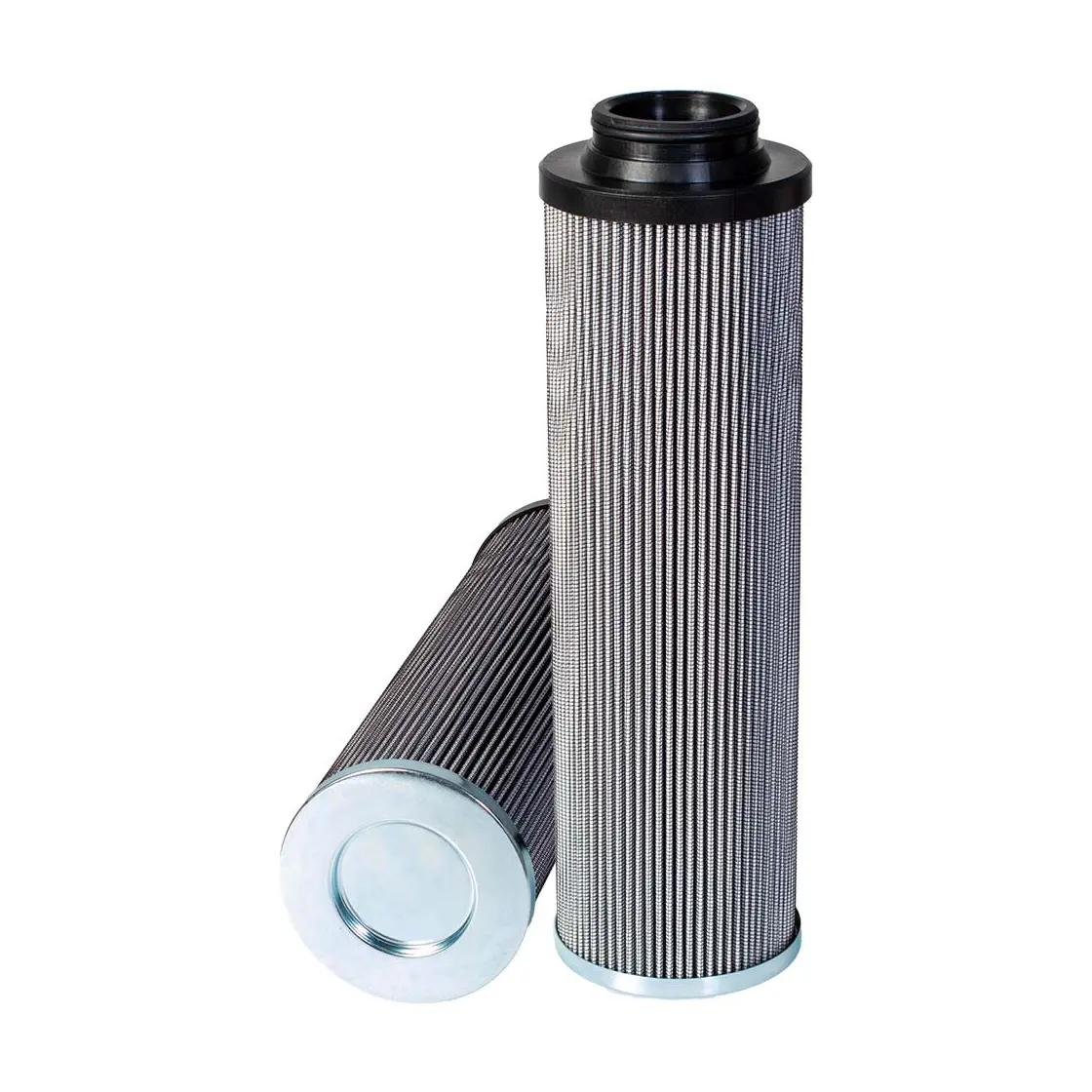

Description
- Filter Element Type: 10Q Microglass
- Micron rating: 10 μm
- Sealant: Nitrile
- Length: 321 mm
The 18/28/38P series of high pressure filters are designed to meet the demanding applications in the global mobile and industrial markets. Featuring metric mounting and optional ISO 6149 ports, the series offers a truly global design. This filter series offers a wide range of filter elements with high capacity and low initial differential pressure, providing excellent protection for system components.
Standard filters come with an industrially proven spindle-type bypass valve. For critical applications such as servos or proportional controls, high-strength element combinations without bypass provide maximum protection.
The series of low-hysteresis differential pressure indicators provides excellent performance.
Applications:
- Mobile working hydraulics
- Mobile drive system
- Injection molding
- Servo Controls
- Die casting
- Machines
