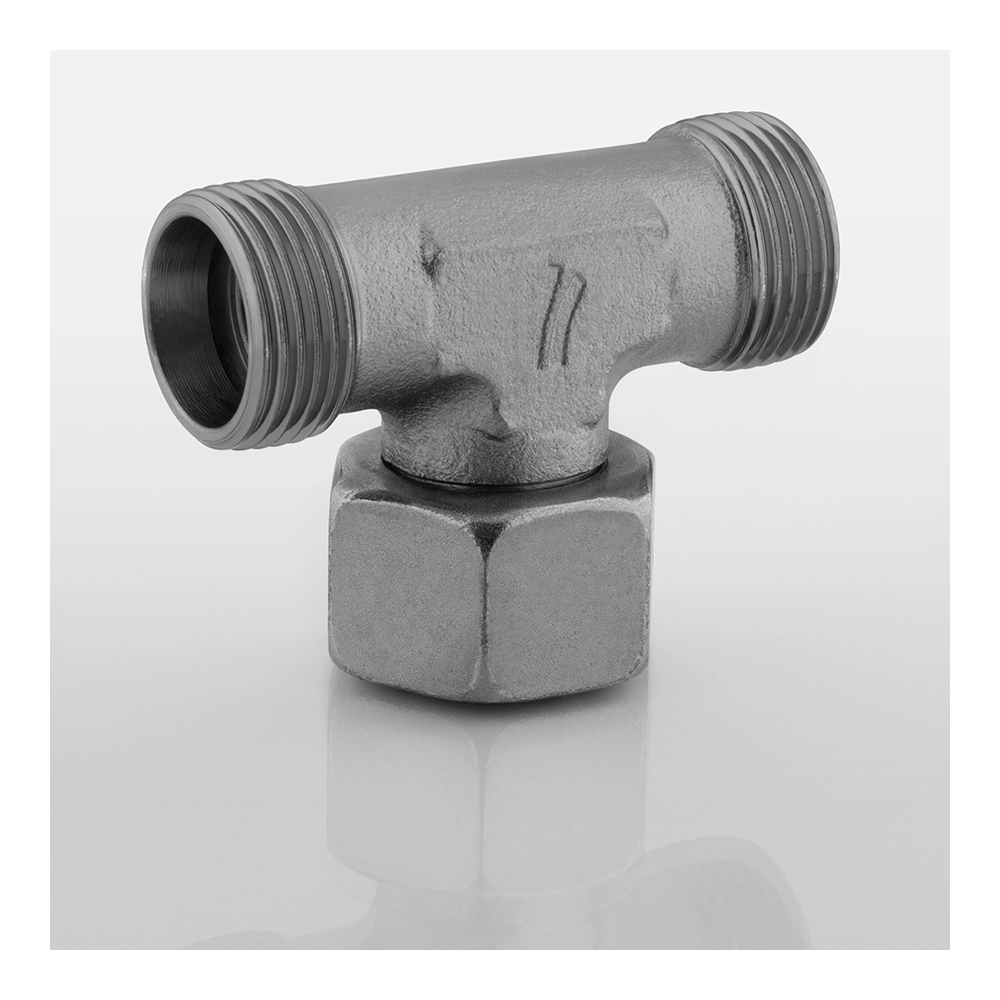

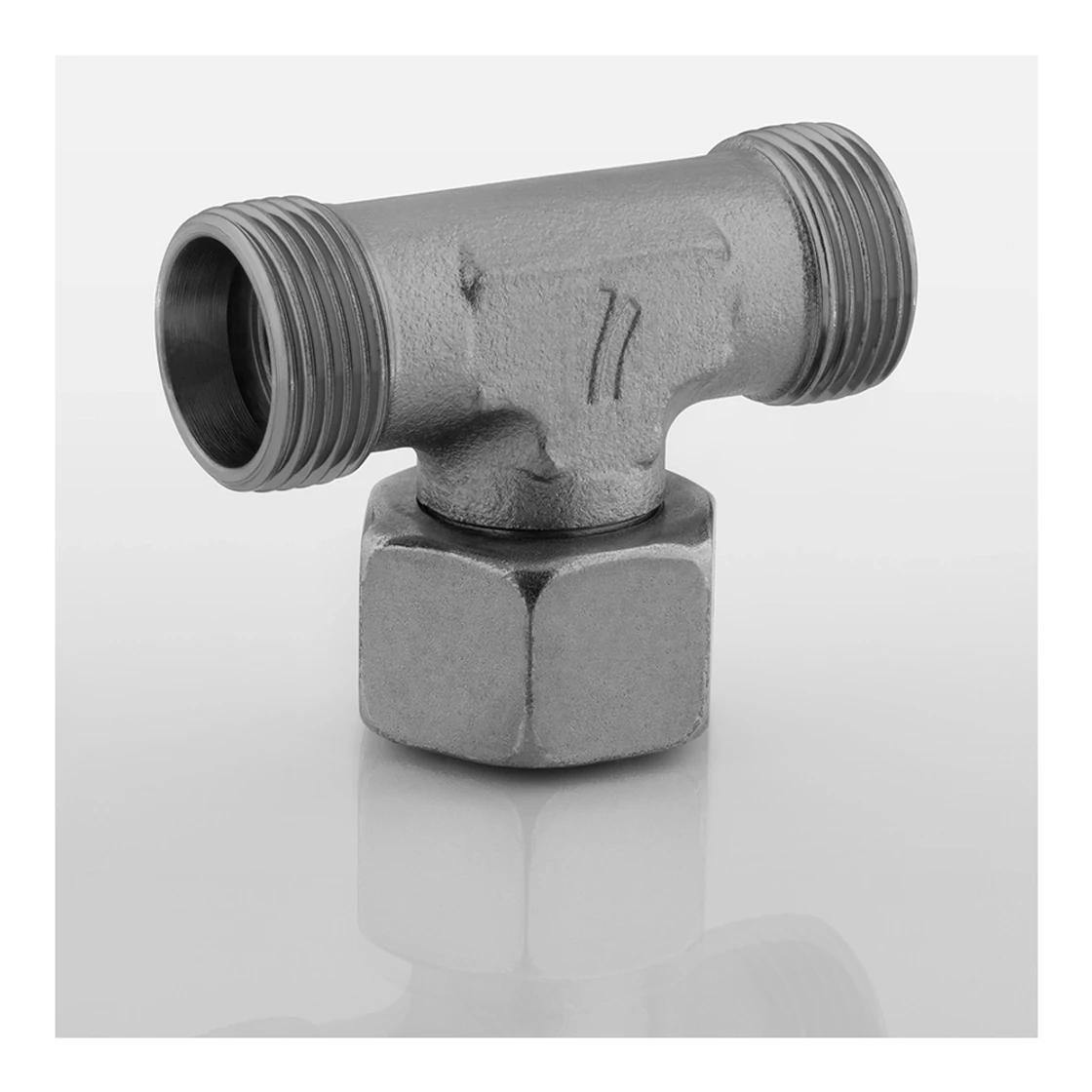

Tube Coupling - ET 35-L
70.3128 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - ET 35-L

70.3128 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric female swivel nut
Connection 2 Metric male thread
Connection 3 Metric male thread
Connection G1 - G3 (mm) M45x2
Connector sub-type Metrikus menet - könnyű kivitel (ET-L)
Connector type T-idom rátét - ET
Ø d2 (mm) 35
Surface Galvanic coating

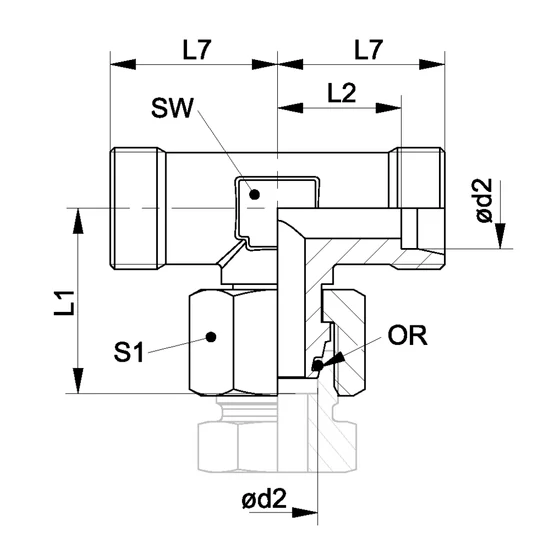

Design L
L1 (mm) 51
L2 (mm) 34.5
L7 (mm) 45
S1 (mm) 50
SW (mm) 41
Standard ISO 8434-1
Structural form T-fitting Insert - ET
Extent Swivel nut, without cutting ring
Sealing 1 24° external cone
Sealing 2 24° internal cone
Sealing 3 24° internal cone
Operating pressure (bar) 160
Main category Csatlakozók
SubCategory Csavarzatok
Manufacturer Nincs
Manufacturer article number: VETONW32HL
Model: HQCET35L00
Availability: 3 pcs in stock
Manufacturer: Nem besorolt
