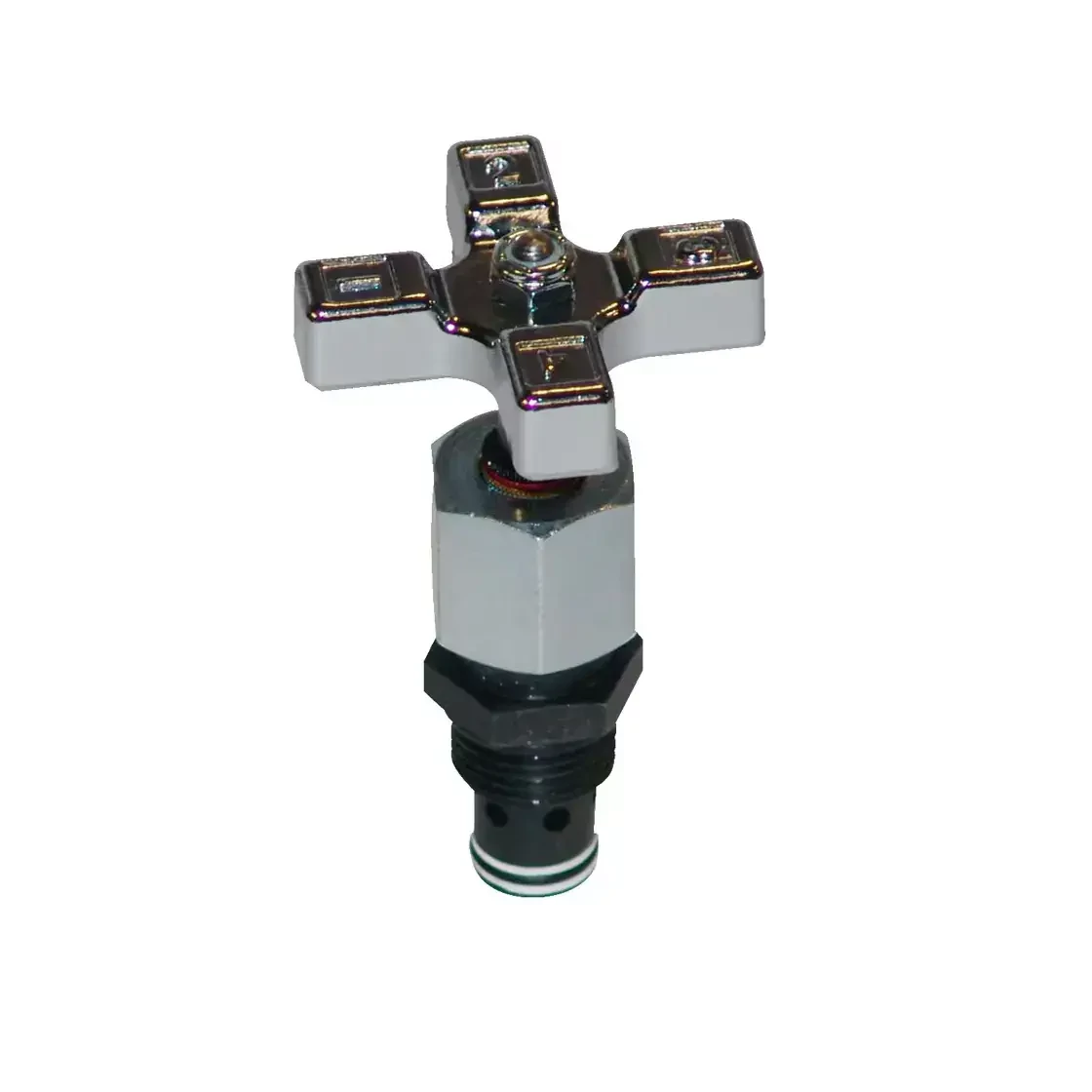

Needle valve cartridge - MVI600S

Needle valve cartridge - MVI600S

Manufacturer article number: MVI600S
Model: HVLFFS10PR
Availability: 5 pcs in stock
Manufacturer: Parker

The Parker Colorflow MVI series is a cartridge-type needle valve that regulates flow in both directions.

Maximum Operating Pressure: 5000 psi (340 bar)
Flow Rate: 30 L/min (8 gal/min)
Connection Size: 3/8" NPT
Operation Type: Manual
Function: Needle valve
Body Material: Steel
Seal Material: Nitrile
Operating Temperature: Between -40 °F (-40 °C) and +250 °F (+121 °C)
Configuration: Cartridge type
Fluid Type: Hydraulic oil
Needle Option: Standard

Description

Features and benefits:

  • High-efficiency O-ring stem seal eliminates the need for packaging
  • Fine and micro-fine needles for highly precise control
  • Unique "Colorflow" color strip provides accurate visual feedback on settings

Markets:

  • Factory automation
  • Machines
  • marine
  • Material handling
  • mining
  • Industrial applications
  • Vehicle Assembly Plants

Applications:

  • Suitable for general hydraulic applications
