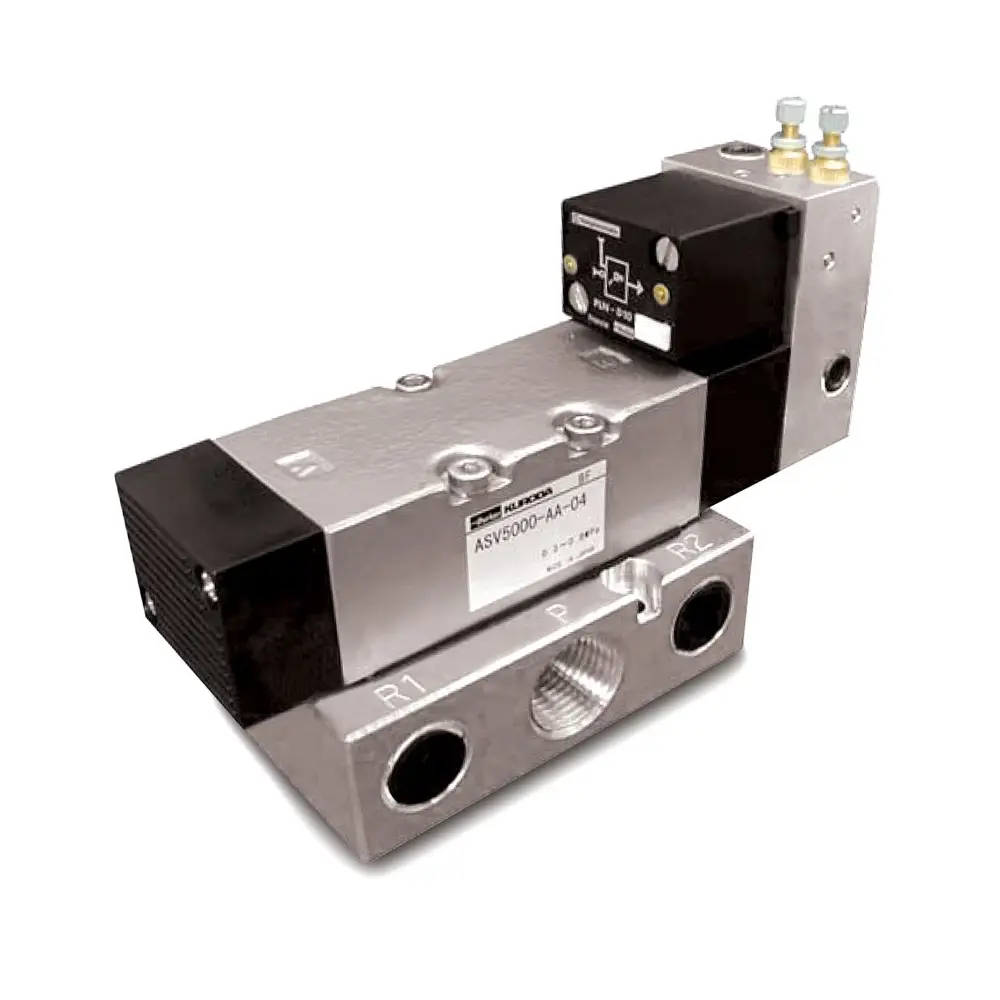

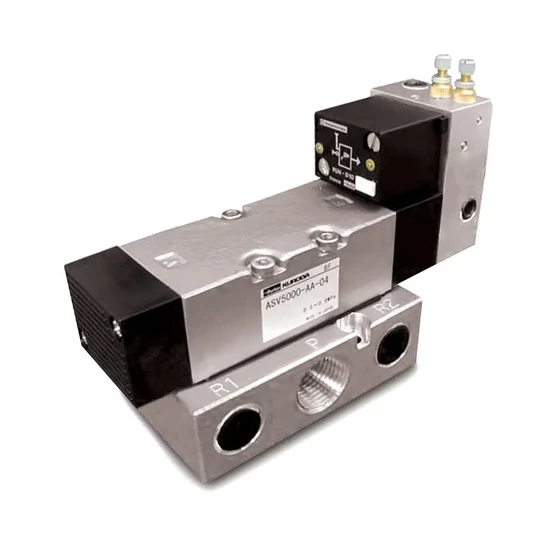

Valve - WPASV200-AA-M5

Pneumatically Operated Economical Air Saver Unit – ASC / ASV Series

The Air Saver Unit offers an easy solution for environmental protection efforts by converting continuous air blow to pulsed air blow without the need for any other external control. This pulsing air technology can reduce air consumption by up to 50%. Air is generated in a series of ON and OFF pulses, and when the flow is OFF, there is no air consumption.

Installation of the Air Saver Unit is simple, and a reduction in air consumption can be realized immediately. When using an electrically operated solenoid valve to control the air flow, an Air Saver Unit can be quickly and easily retrofitted, providing an immediate reduction in air consumption with no changes to the PLC program. When using manual valves such as ball valves, ASV200, ASV500, and ASV2000 units do not need any electrical power. Simply installing the unit brings immediate reduction in air consumption and improved efficiency.

Technical Specifications

• Valve Type: Normally Closed, Internal Pilot Operated
• Actuation Type: Pneumatic
• Lubrication: White petrolatum grease
• Port Size: M5 (Metric)
• Maximum Flow Rate: 200 L/min
• Pressure Rating: Vacuum to 116 psig (Vacuum to 8 bar)
• Operating Temperature: -5 to 50 °C (23 to 122 °F)
• Media: Air
• Lubricant: White Petrolatum Grease
• Flow Rate (lpm): 200
• Function: Normally Closed / Internal Pilot Operated
