Description

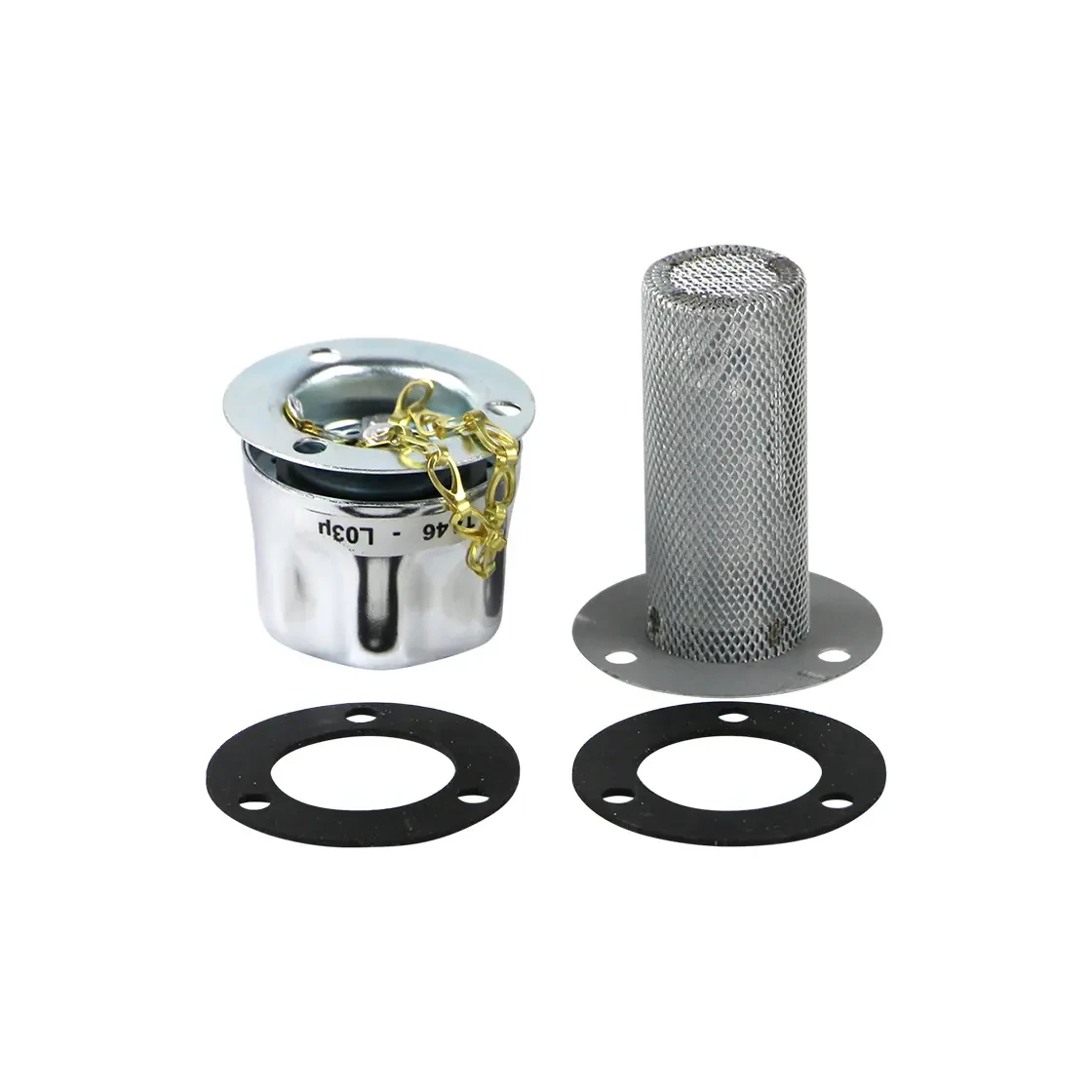

Steel charging plug and air filter.
Flow rate up to 200 litres per minute.

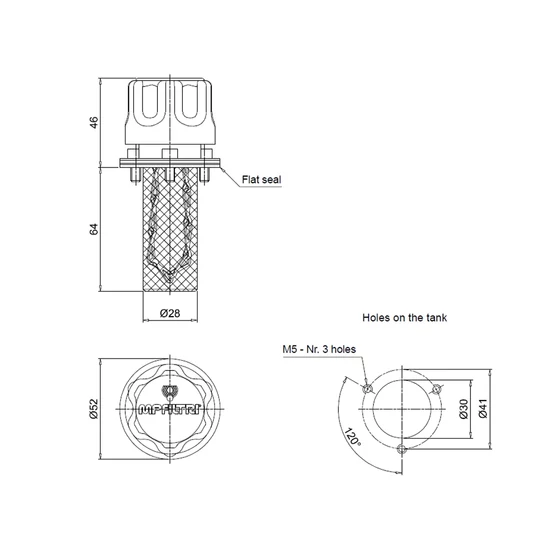

The TA46 is a series of compact metal air filters and filling caps that protect the tanks from solid contaminants in the air and during liquid pouring into the system, such as during commissioning and maintenance. They can be mounted directly on the tank. Their robust design allows these filters to be used in any heavy-duty industrial application.
Available functions:
- Male threaded connectors up to 1/4" and flange connection with bayonet lock with maximum flow rate of 200 l/min.
- Fine cellulose filtration that ensures cleanliness in the tank.
- Filling basket that catches coarse dirt in the liquid and regulates the flow of the liquid in the tank.
Applications:
- Compact hydraulic systems
- Compact mobile machines
- Industrial equipment
| Flow rate (Δp 0.02 bar) | Screening Evaluation | Flow rate [l/min] |
|---|---|---|
| 0.02 bar | 03 of 10 | 150, 200 |
Materials (G/N version):
- Lid: chrome-plated steel
- Filter element: resin-soaked paper, polyurethane
- Hub: galvanized steel
- Connection: phosphate-coated steel
Materials (Variant B):
- Lid: chrome-plated steel
- Filter element: resin-soaked paper, polyurethane
- Hub: galvanized steel
- Connection: galvanized steel
- Seals: NBR
- Chain: brass
- Screws: galvanized steel
- Basket: galvanized steel
Temperature range:
-25 °C to +100 °C
