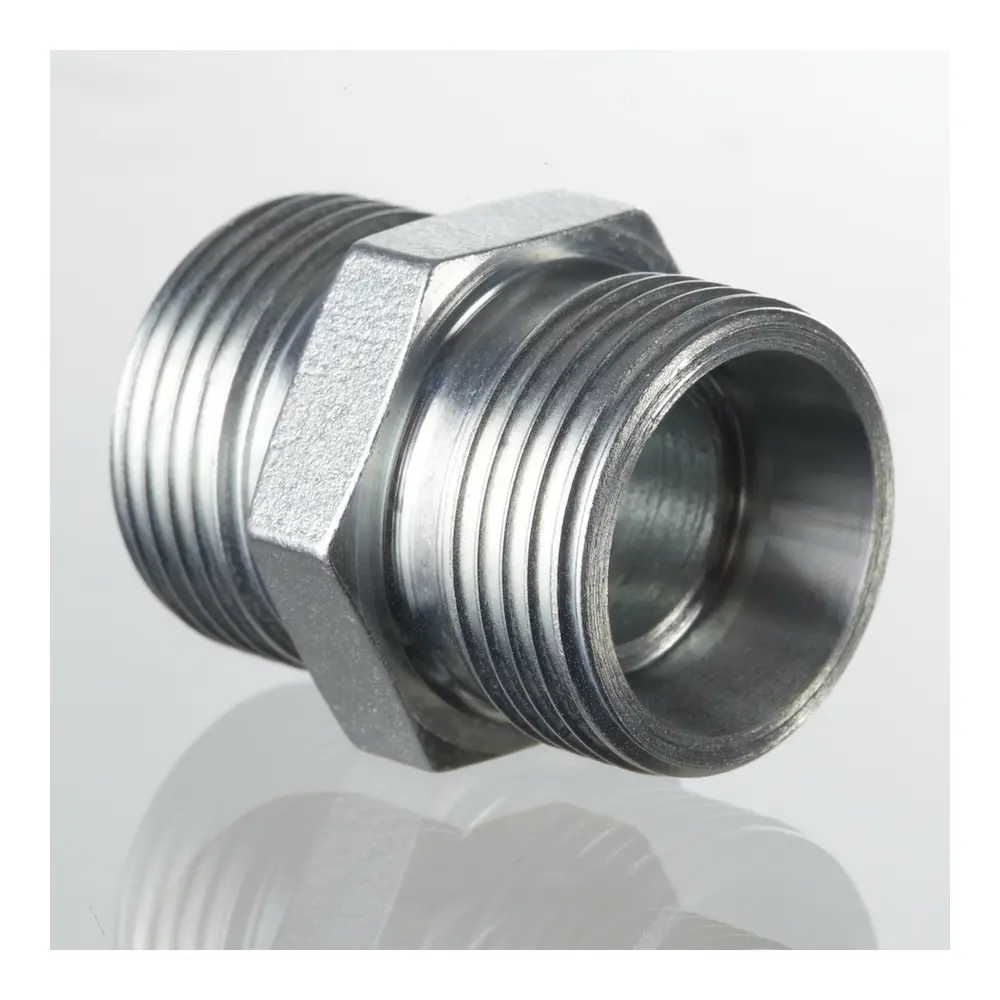

Tube Coupling - G 08-LL
2.5057 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - G 08-LL

2.5057 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric external thread
Connection 2 Metric external thread

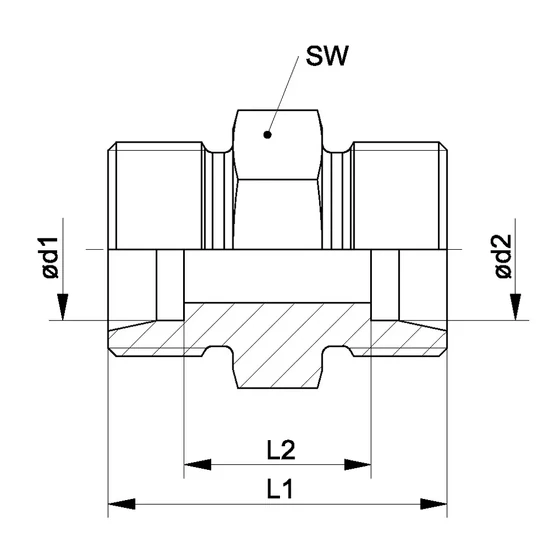

Connection G1 - G2 (mm) M12x1
Connector sub-type Metrikus menet - extra könnyű kivitel (G-LL)
Connector type Straight fitting - G
Ø d1 (mm) 8
Ø d2 (mm) 8
Surface Galvanic coating
Design LL
L1 (mm) 23
L2 (mm) 12
SW (mm) 12
Standard ISO 8434-1
Structural form Straight fitting
Extent Nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 24° internal cone
Operating pressure (bar) 100
Manufacturer article number: 1AX100LL08
Model: HQCGG08LL0
Availability: 26 pcs in stock
Manufacturer: Nem besorolt
