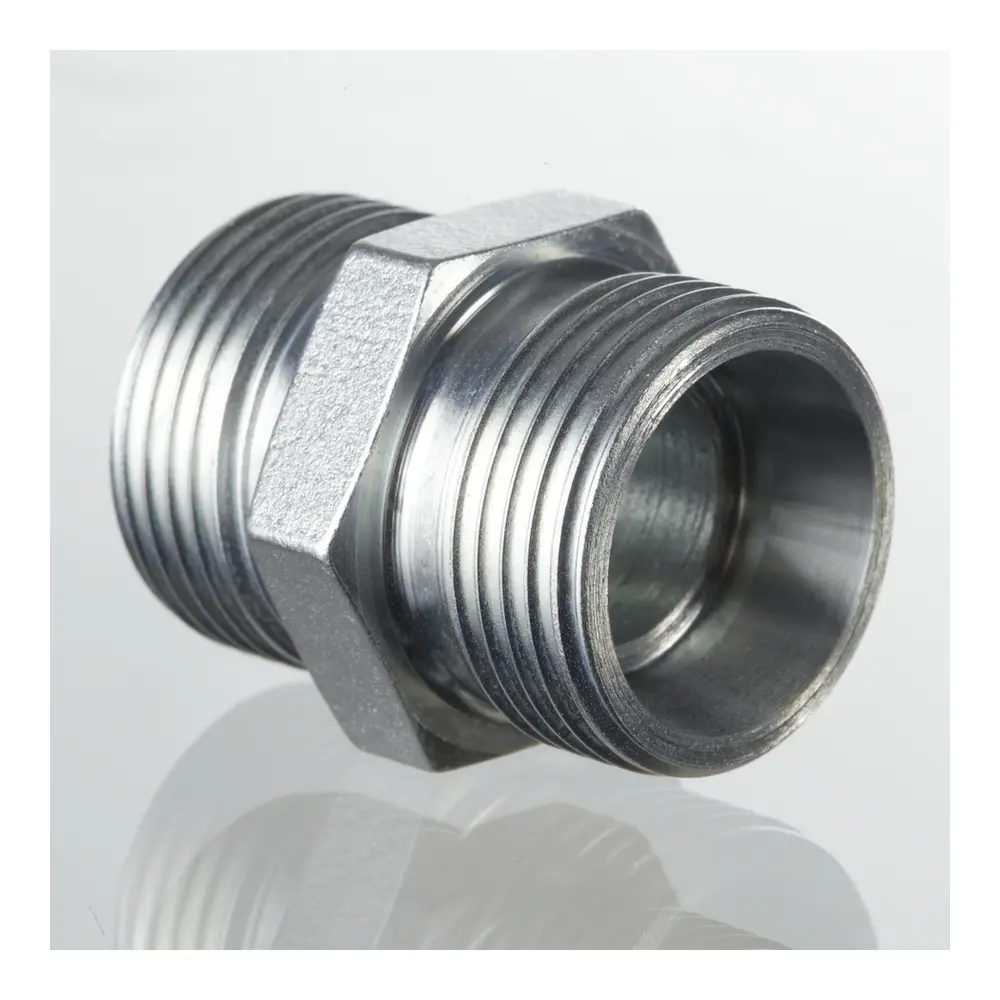

Tube Coupling - G 08-L
2.2551 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - G 08-L

2.2551 € + VAT
Qty:pcs
Add to Cart

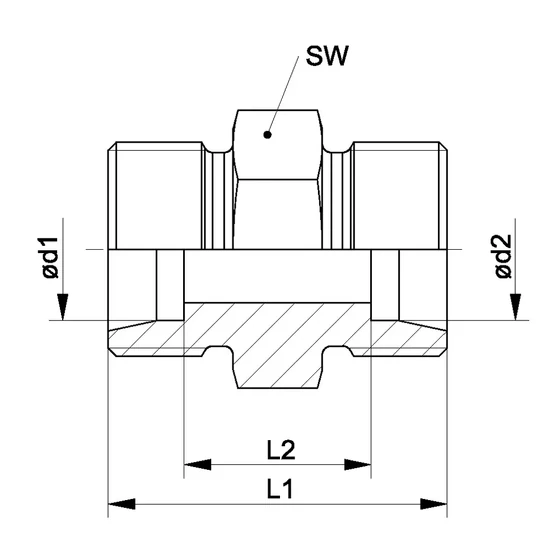

Material Steel
Connection 1 Metric external thread
Connection 2 Metric external thread
Connection G1 (mm) M14x1,5
Connection G2 (mm) M14x1,5
Connector sub-type Metrikus menet - könnyű kivitel (G-L)
Connector type Straight fitting - G
Ø d1 (mm) 8
Ø d2 (mm) 8
Surface Galvanic coating
Design L
L1 (mm) 25
L2 (mm) 11
SW (mm) 14
Standard ISO 8434-1
Structural form Straight fitting
Extent Nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 24° internal cone
Operating pressure (bar) 315
Manufacturer article number: VNW06HL
Model: HQCGG08L00
Availability: 40 pcs in stock
Manufacturer: Nem besorolt
