Description

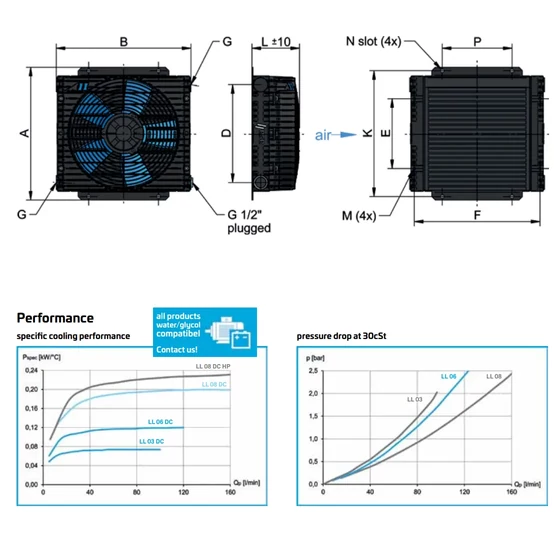

| Part number | description | A [mm] | B [mm] | D [mm] | E [mm] | F [mm] | G | K [mm] | L [mm] | M | N [mm] | P [mm] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HEALL06HP12 | LL 06 12V DC | 290 | 320 | 215 | 180 | 301 | G 3/4" | 269 | 145 | M6 | 7x10 | 155 |
| Part number | description | Power [kW] | Current [A] | Protection Level | Airflow [m³/s] | Noise level [dB] | Weight [kg] | Optional internal passage (2 bar) |
|---|---|---|---|---|---|---|---|---|
| HEALL06HP12 | LL 06 12V DC | 0.10 | 7.7 | IP 68 | 0.29 | 74 | 5.6 |
Radiator
- Material: Aluminum
- Operating temperature range: –20°C to +100°C (oil temperature)
- Air cooling fin: corrugated
- Max. operating pressure: 26 bar (static)
