Description
Charging plug and polyamide air filters
Flow rate up to 2150 l/min

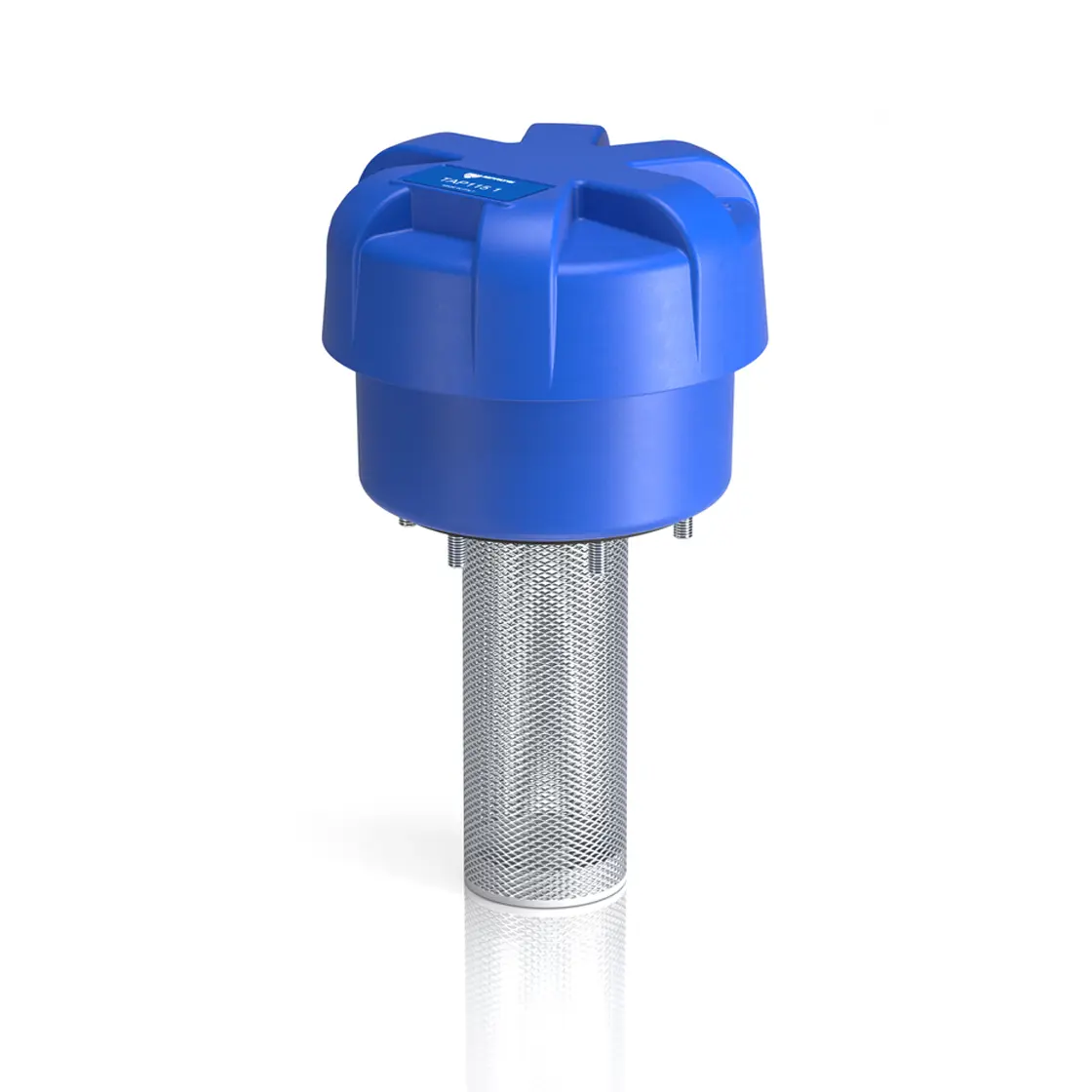

The TAP115 is a series of large plastic airtight and filling caps designed to protect containers from solid contaminants in the air and to fill liquids during system commissioning and maintenance. It is mounted directly on the tank.
Features:
- Connection: flange connector, maximum flow rate 2150 l/min
- Replaceable filter element
- Fine cellulose and microfiber filtration to improve the cleanliness level of the tank. Polyester media optional for harsh environmental conditions (high humidity, sand...)
- Spectacular clogging indicator
- Filling basket that catches coarse dirt in the liquid and disperses the liquid in the container
Common Application:
- Hydraulic systems
- Moving machines
- Industrial equipment
Flow rate Δp 0.02 bar.
| Filtration class | A03 | L10 |
|---|---|---|
| TAP115-1 | 1600 | 2000 Region |
| TAP115-2 | 2150 | 2150 |
Materials:
- Lid/Flange: Polyamide
- Filter element: Microfibre, resin-soaked paper
- Seals: NBR, FPM
- Basket/Screws: Galvanized Steel
Congestion indicators
- Manual restart
- Set pressure 0.062 bar ±10%
Temperature range: -25 °C to +100 °C.
