Description
Charging cap and polyamide air filters.
Flow rates of up to 200 l/min.

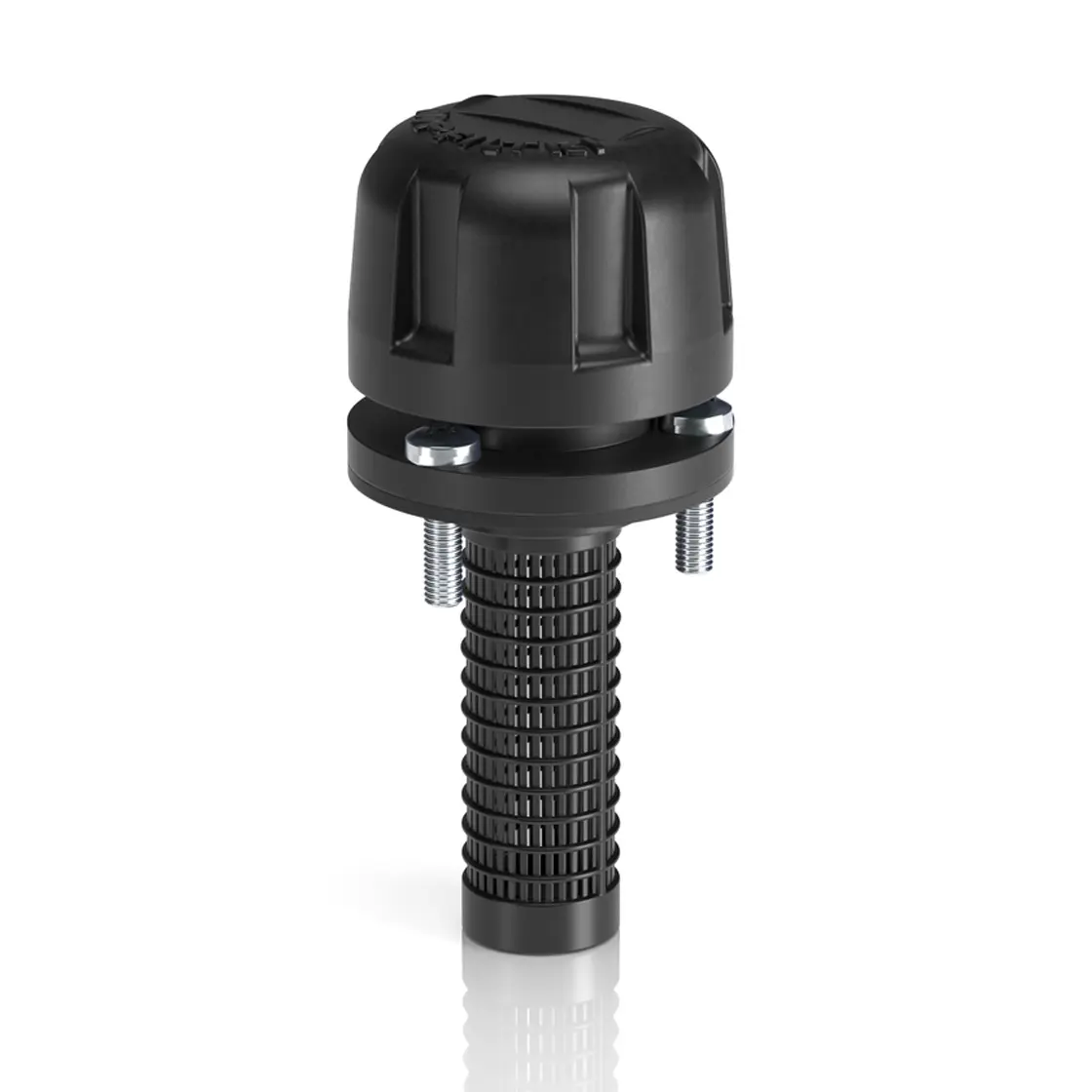

The TAP50 is a compact series of plastic air inlets and filling caps that protect tanks from solid contaminants in the air and help fill the liquid into the systems during commissioning and maintenance.
Features:
- Connection with flange and bayonet lock with a flow rate of up to 200 l/min.
- Fine cellulose filtration to maintain tank cleanliness.
- Filling basket that retains coarse dirt in the liquid and helps distribute the liquid evenly throughout the container.
- Areas of application:
- Compact hydraulic systems
- Compact mobile machines
- Industrial equipment
Flow rate Δp 0.02 bar
| Filtration class | 03 | 10 |
|---|---|---|
| TAP50 | 180 | 202 |
materials:
- Cover/Flange Nut: Polyamide
- Filter element: Resin-soaked paper, Polyurethane
- Pressure Equalization Valve: Polyamide, Galvanized Steel, NBR
- Seals: NBR
- Flock: Polyamide
- Screws: Galvanized steel
- Basket: Polyamide
Operating temperature: -25 °C to +100 °C.
