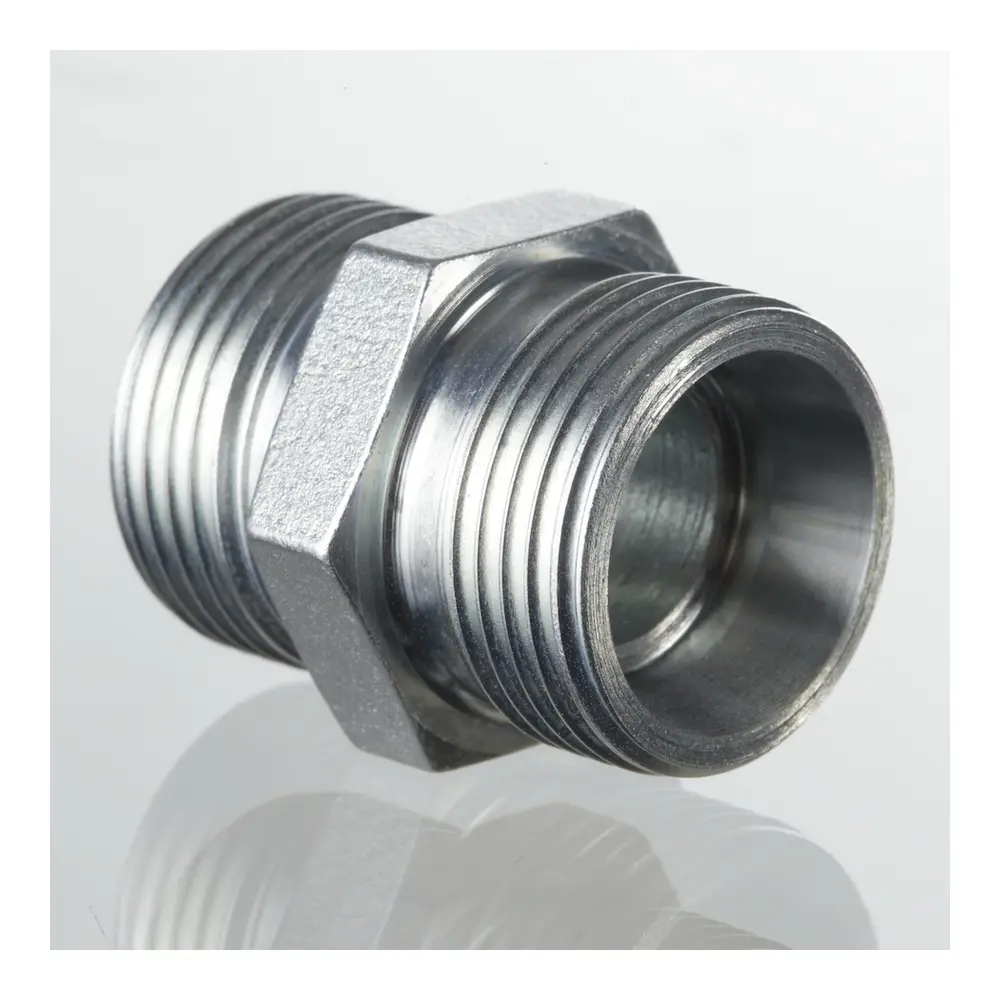

Tube Coupling - X G 15-L
1.7540 € + VAT
Qty:pcs
Add to Cart

Tube Coupling - X G 15-L

1.7540 € + VAT
Qty:pcs
Add to Cart
Material Steel
Connection 1 Metric parallel external thread
Connection 2 Metric parallel external thread
Connector sub-type Metrikus menet
Connector type Egyenes idom - X G

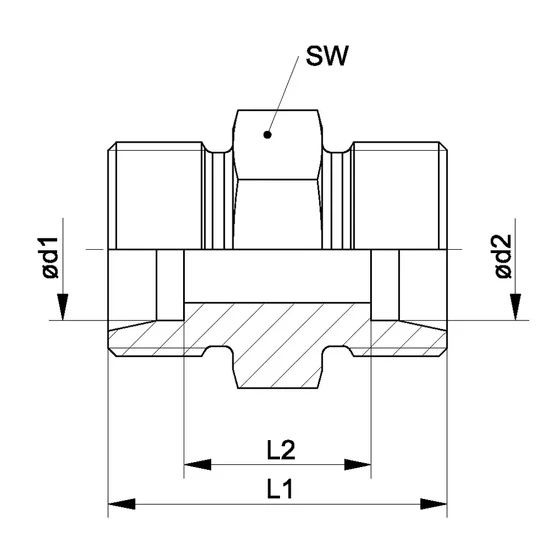

Ø d1 (mm) 15
Ø d2 (mm) 15
Surface Galvanic coating
Design L
L1 (mm) 30
L2 (mm) 16
SW (mm) 24
Standard ISO 8434-1
Structural form Straight fitting
Extent Nut, without cutting ring
Sealing 1 24° internal cone
Sealing 2 24° internal cone
Operating pressure (bar) 315
Manufacturer article number: XVNW13HL
Model: HQCXGG15L00
Availability: 194 pcs in stock
Manufacturer: Nem besorolt
