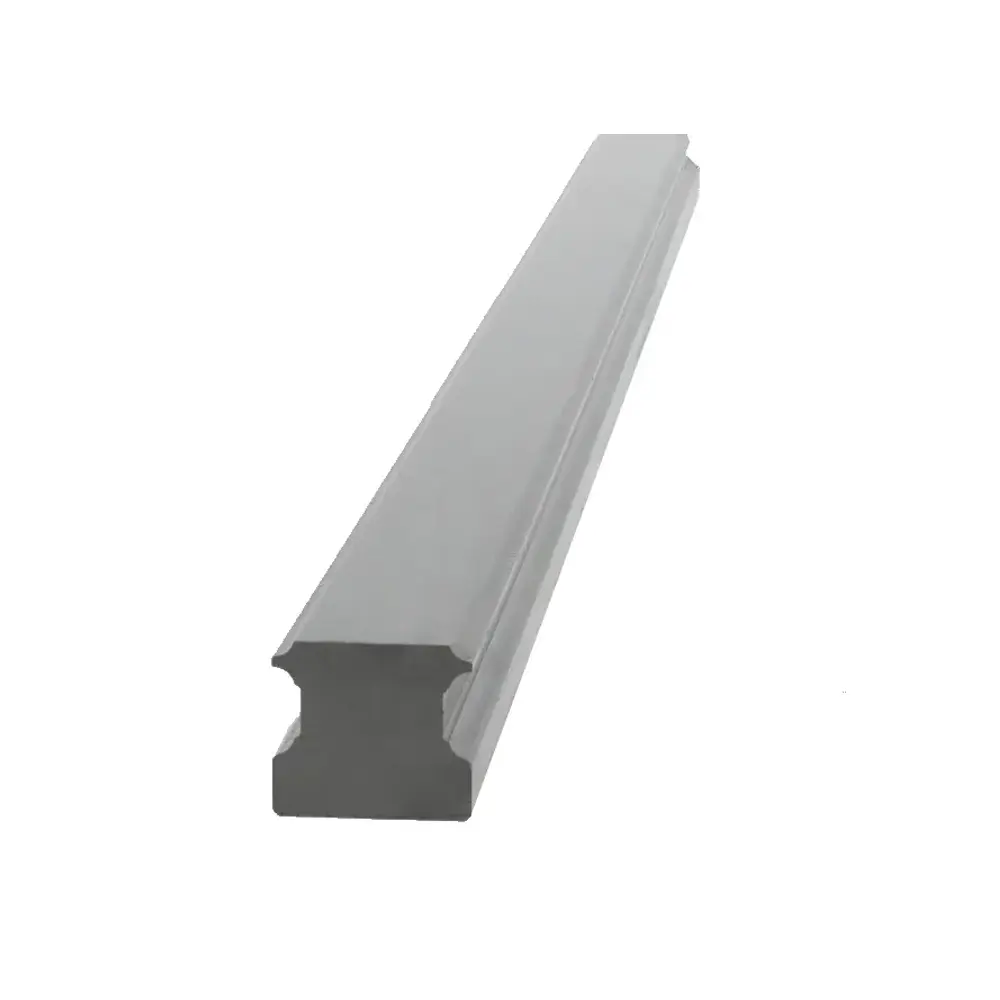

INA linear guide rail - TKSD25-U-G3-HJ

INA G3 Ball Guide Rail, Size 25, Steel

This INA G3 series, size 25 ball guide rail is made from steel and boasts an INA G3 accuracy class. It features a normal width and six raceways, ensuring reliable and precise linear motion. Specifically designed for the KWSE25 carriage, it operates within a temperature range of -10°C to +80°C.

Technical Specifications

• Weight: 3.100 kg
• Series/Size: 25
• Accuracy class: INA G3

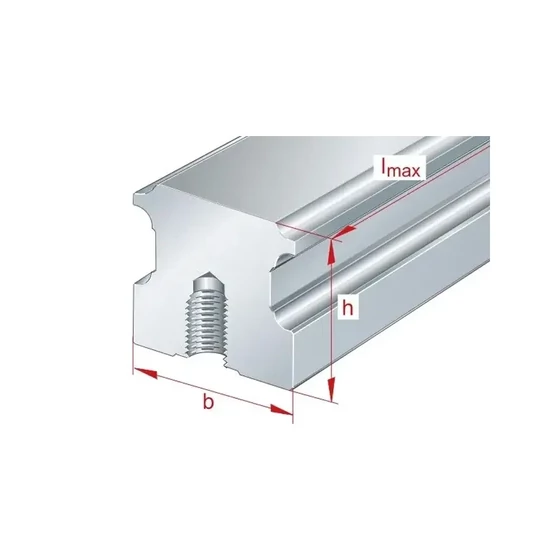

• Distance between holes: 60 mm
• Width: 23 mm
• Height: 23 mm
• Hole diameter: 10 mm
• For carriage: KWSE25
• Temperature range: -10°C / +80°C
• Hole caps (included): Not required
• No. of raceways: 6
• Mounting: Normal (From below)
• Material: Steel
• Rolling elements: Balls
• Type of absorbable rolling elements: Balls
• Width: Normal
• Brand: INA
• Customs tariff no.: 84829900
• Tolerance class: G3
• Product type: Linear guides
• Version: Standard
• Shortest hole spacing: 8 mm
