Description
Technical Specifications

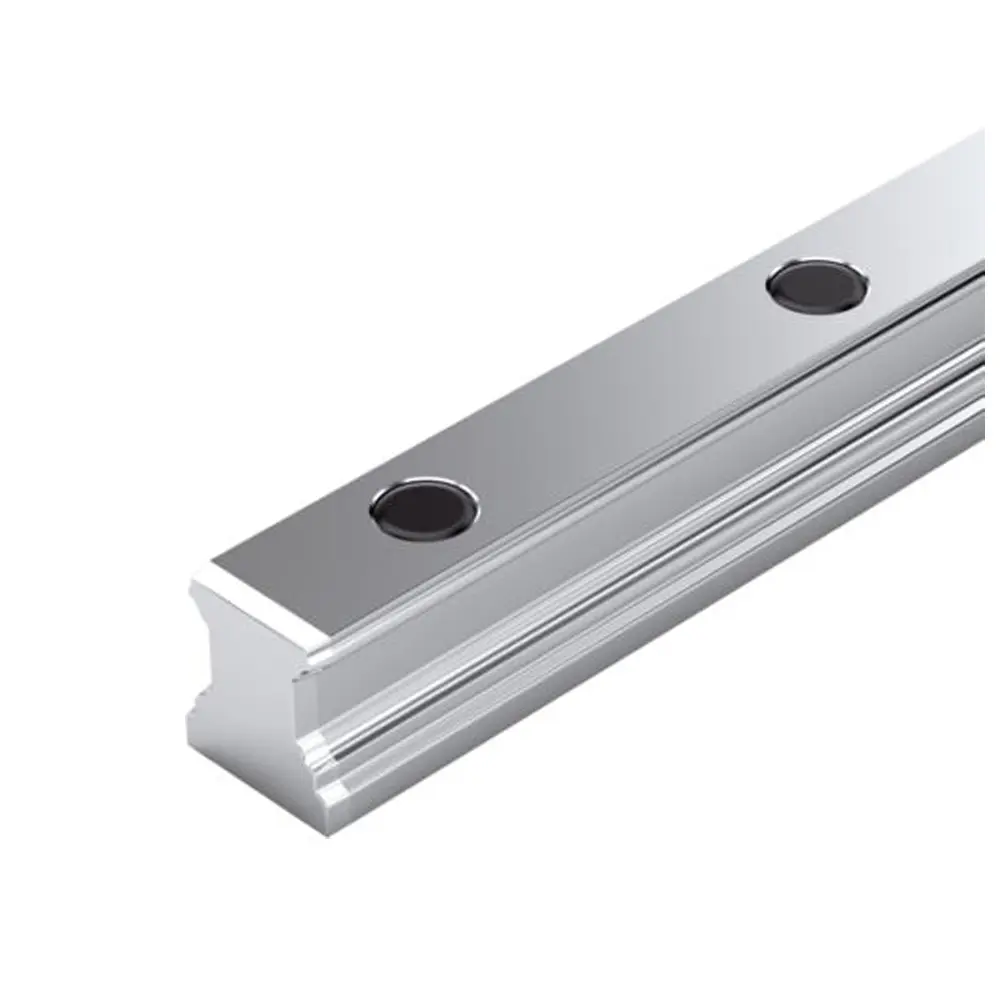

- Version: Ball rail system
- Nominal size: 20 mm
- Format: SNS - Standard guide rail
- Material (profiled rail systems): Carbon steel
- Accuracy class: N - Normal
- Guide rail mounting: For bolting from above
- Guide rail cover: Plastic caps
- Max. length Lmax: 5816 mm
- Note Lmax: Available on request.
- Minimum length Lmin: 80 mm
- Number of holes nB (profiled rail systems): 64
- Number of sections: 1-piece
- Mass m (kg/m): 2.4 kg/m
- Permissible ambient temperature (min. ... max.): -10 °C ... +80 °C
- Note: 100 °C admissible for a short time. For operation at negative temperatures, please consult us.
- Weight: 0 kg
- Recommended rail length (formula): L = nB • T ‒ 4 mm
- Pitch T guide rail: 60 mm

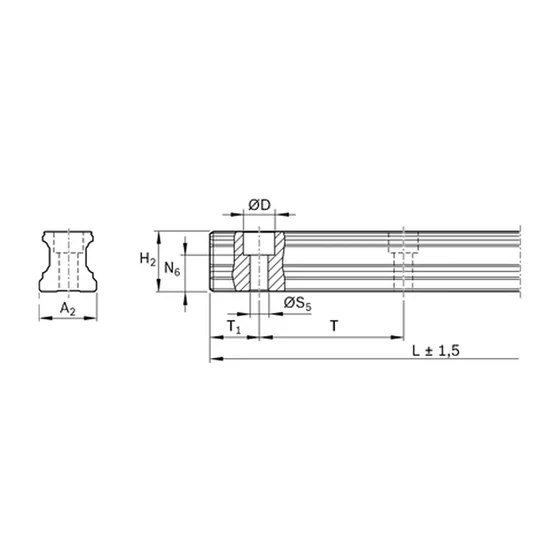

- Dimension A2 (profiled rail systems): 20 mm
- Dimension D: 9.4 mm
- Dimension H2 without cover strip (profiled rail systems): 20.55 mm
- Dimension N6 (profiled rail systems): 13.2 mm
- Dimension N6 tolerance (profiled rail systems): ±0.5 mm
- Dimension S5 (profiled rail system): 6 mm
- Dimension T: 60 mm
- Dimension T1 max (profiled rail systems): 50 mm
- Dimension T1 min: 10 mm
- Dimension T1 s (profiled rail systems): 28 mm
- Footnote of dimension T1 s (profiled rail systems): Preferred dimension T1S with tolerances ± 0.75 recommended.
