Miniature ball guide rail - SNS - 12 - L= 96mm - stainless steel

11.1690 € + VAT

Qty:pcs

Add to Cart

Model:

MSSNSL096

Availability:

4 pcs in stock

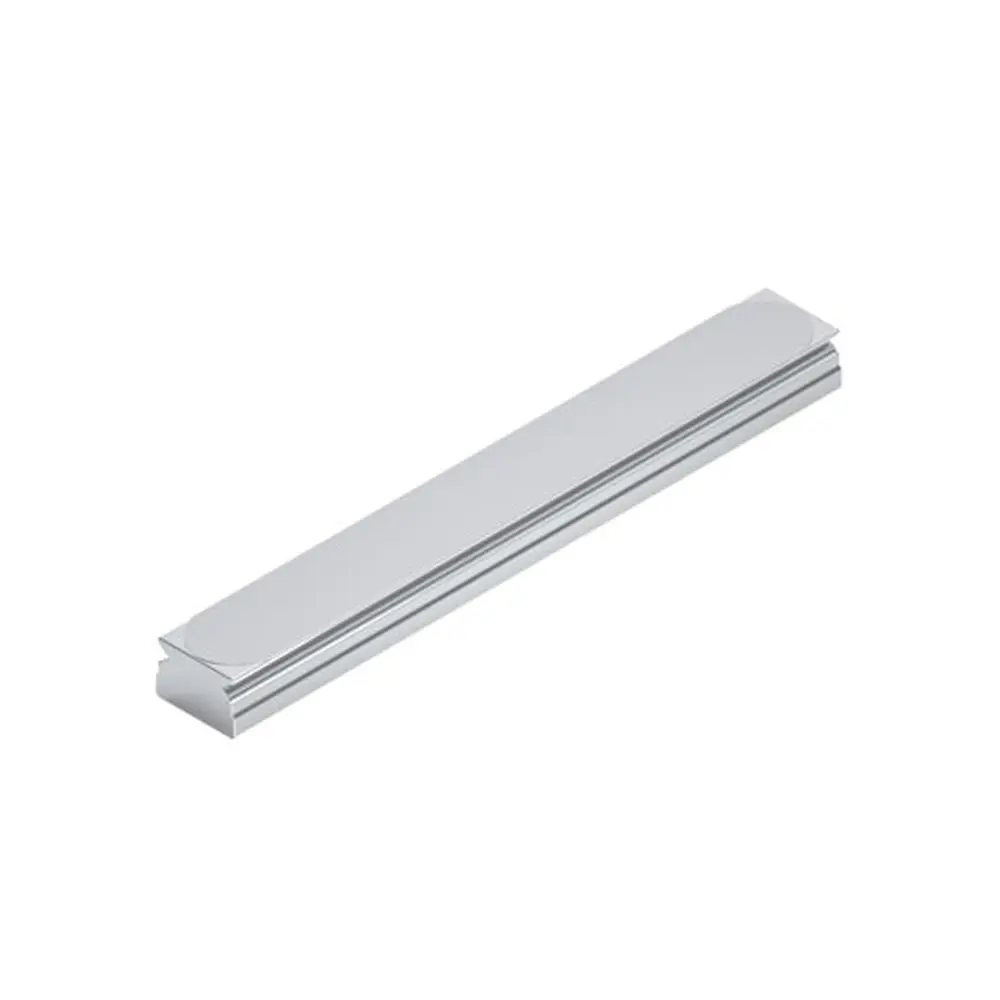

MINIATURE GUIDE RAIL RESIST NRII MSA-012-SNS-N-MA-AB

This MINIATURE GUIDE RAIL RESIST NRII MSA-012-SNS-N-MA-AB is part of a ball rail system, falling into the category of miniature ball guide rails. It is made from high-quality corrosion-resistant martensitic steel and is specifically designed for R0442 and R0444 runner blocks.

Product Features

Size: 12
Format: SNS (Width = slimline, length = normal, height = standard)
Guide rail material: Corrosion-resistant, martensitic steel
Fastener (MA): Bolting from above
Cover (AB): With cover strip
Accuracy class: Standard (N - Normal)
Number of partial sections: One-piece
Rail version: Standard
Compatibility: For runner blocks R0442 and R0444.

Description

Description

Technical Specifications

Nominal size: 12 mm
Max. length Lmax: 2000 mm
- Note Lmax: In the case of rail lengths above Lmax, factory-coordinated partial sections are put together.
Minimum length Lmin: 34 mm
Number of sections: 1-piece
Mass m (kg/m) [kg/m]: 610
Mass g/m [g/m]: 610
Permissible ambient temperature (min. ... max.): -10 °C ... +80 °C
- Note: 100 °C admissible for a short time.
Weight: 0 kg

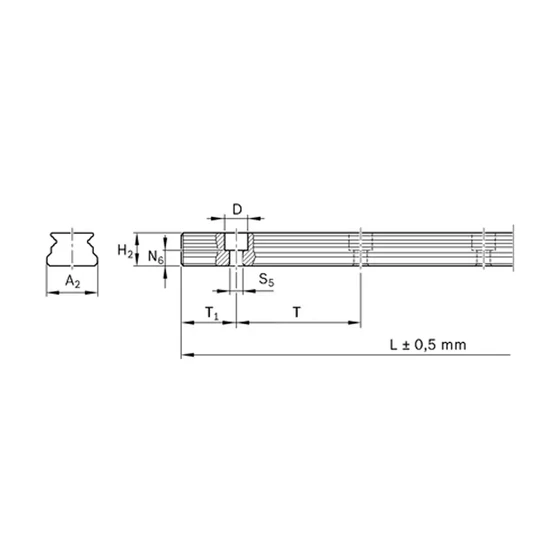

Recommended rail length (formula): L = nB • T ‒ 4 mm
Pitch T guide rail: 25 mm
Dimension A2 (profiled rail systems): 12 mm
Dimension D: 6 mm
Dimension H2 with cover strip (profiled rail systems): 7.9 mm
Dimension H2 without cover strip (profiled rail systems): 7.8 mm
Dimension N6 (profiled rail systems): 3 mm
Dimension S5 (profiled rail system): 3.5 mm
Dimension T: 25 mm
Dimension T1 max (profiled rail systems): 20.5 mm
Dimension T1 min: 6 mm
