Pneumatic cylinder - 167-061-000-0

186.1043 € + VAT

Qty:pcs

Add to Cart

Model:

PC15A063010063

Availability:

1 pcs in stock

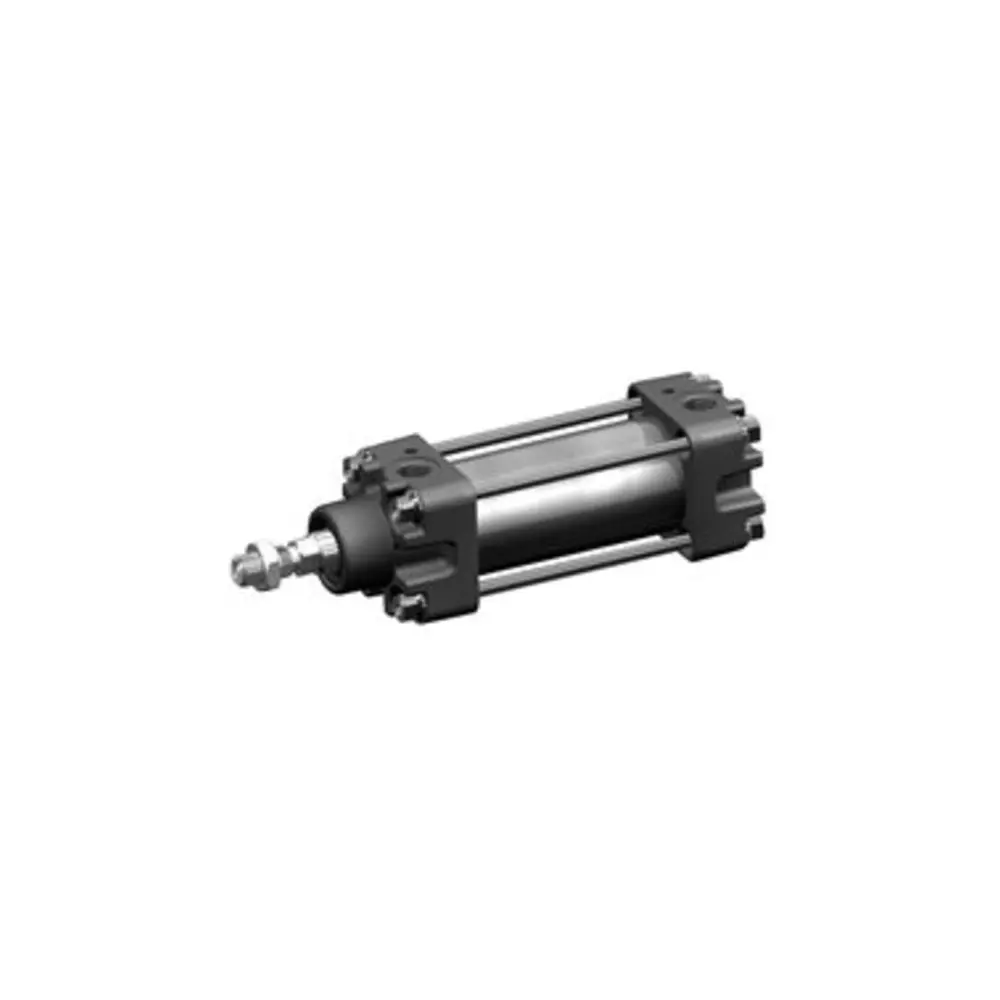

This ISO 6431 compliant pneumatic cylinder is available in piston diameters from Ø25 mm to 100 mm and can achieve a maximum stroke of 1500 mm. It is specifically designed for high stroke frequencies and pulley applications. The plug-in connection with tube nut/external thread ensures simple and quick installation. The integrated magnetic piston and adjustable pneumatic cushioning contribute to reliable and efficient operation.

Key Features

Piston Diameters: Ø25 mm ... 100 mm
Max. stroke: 1500 mm (specific cylinder max. stroke: 1600 mm)
Application: For high stroke frequencies and pulley applications
Connection: Plug-in with tube nut / External thread

Description

Description

Technical Specifications

Standards: ISO 6431
Piston Ø: 63 mm
Stroke: 100 mm

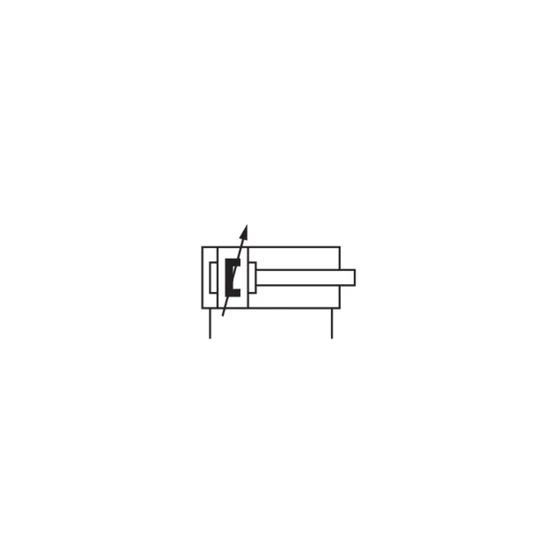

Functional principle: Double-acting
Cushioning: Pneumatic adjustable cushioning
Magnetic piston: Piston with magnet
Environmental requirements: Industry standard
Piston rod: Single
Scraper: Standard industrial scraper
Pressure for determining piston forces: 8 bar
Retracting piston force: 1680 N
Extracting piston force: 1860 N
Min. ambient temperature: -20 °C
Max. ambient temperature: 75 °C
Working pressure min.: 2 bar
Working pressure max: 10 bar
Ports: G 3/8
Piston rod thread: M16x1.5
Cushioning length: 16.5 mm
Weight 0 mm stroke: 1.7 kg
Weight +10 mm stroke: 0.054 kg
Stroke max.: 1600 mm
Medium: Compressed air
Min. medium temperature: -20 °C
Max. medium temperature: 75 °C
