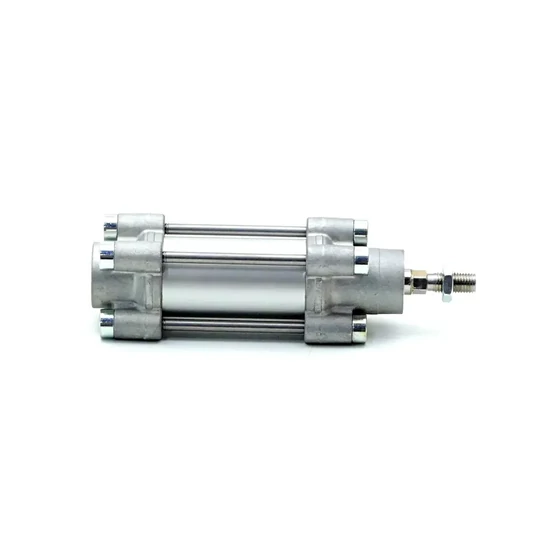

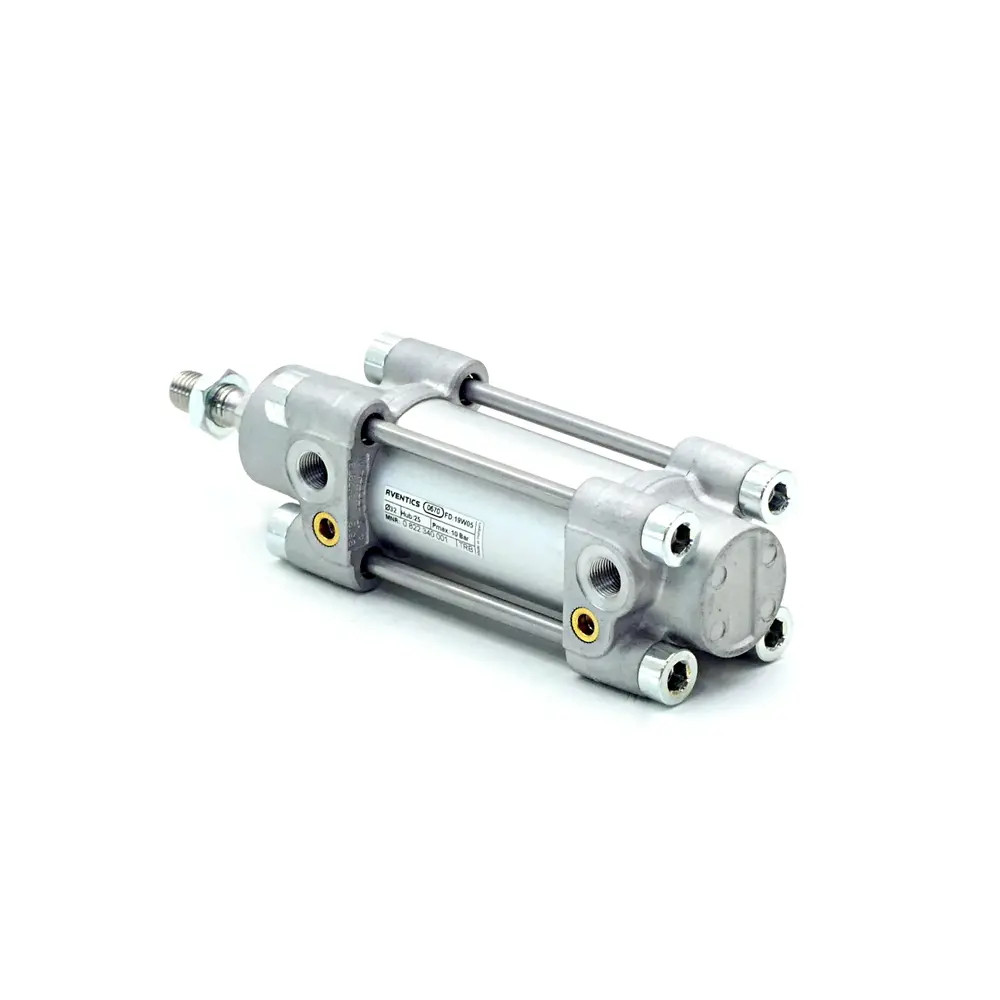

Pneumatic cylinder - TRB - 32/25

124.0695 € + VAT

Qty:pcs

Add to Cart

Model:

PC15A0320025BR

Availability:

15 pcs in stock

Pneumatic Cylinder, ISO 15552, Double-Acting, Ø32mm, 25mm Stroke

This ISO 15552 compliant pneumatic cylinder is available in piston diameters from 32 mm to 125 mm and features the latest advanced pneumatic and additional elastic cushioning technology for smooth and reliable operation. The modular scraper system allows for easy scraper changes, significantly reducing service intervals and increasing lifespan.

Key Features

Piston Diameters: Available from 32 mm to 125 mm
Advanced pneumatic cushioning: For smooth operation
Additional elastic cushioning: For further shock absorption
Wide range of scraper modules available: Exchangeable as needed
Modular system: Allows you to change the scraper on the cylinder at any time and considerably decrease service intervals

Description

Description

Technical Specifications

Standards: ISO 15552
Piston Ø: 32 mm
Stroke: 25 mm

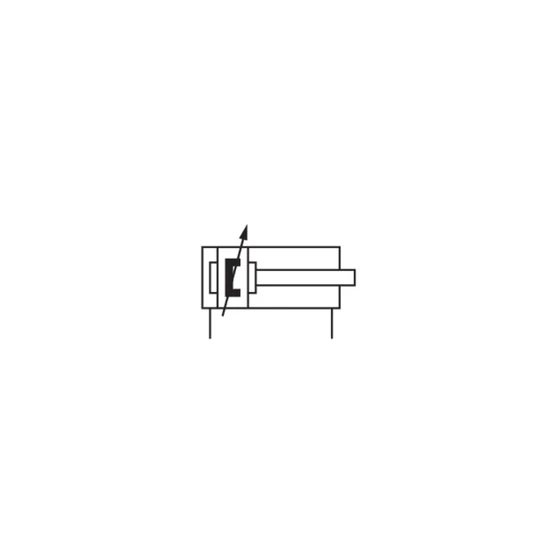

Functional principle: Double-acting
Cushioning: Pneumatic adjustable cushioning
Magnetic piston: Piston with magnet
Environmental requirements: Industry standard, ATEX optional
Certificates: ATEX optional
Piston rod: Single
Scraper: Standard industrial scraper
Pressure for determining piston forces: 6.3 bar
Retracting piston force: 435 N
Extracting piston force: 505 N
Min. ambient temperature: -20 °C
Max. ambient temperature: 80 °C
Working pressure min.: 1.5 bar
Working pressure max: 10 bar
Ports: G 1/8
Piston rod thread: M10x1.25
Cushioning length: 16.5 mm
Cushioning energy: 4.8 J
Weight 0 mm stroke: 0.46 kg
Weight +10 mm stroke: 0.024 kg
Stroke max.: 1600 mm
Medium: Compressed air
