Pneumatic cylinder - 63MT1R063A0075

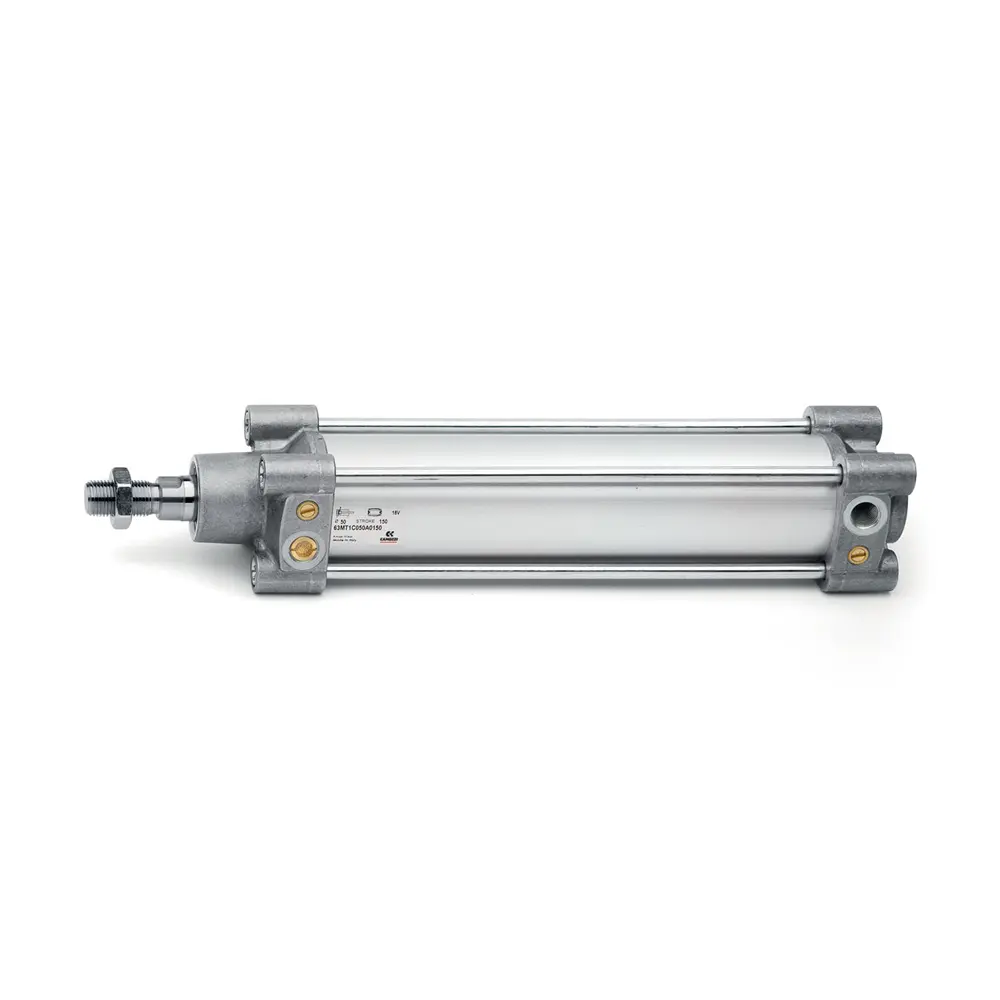

Camozzi Pneumatic Cylinder - 63MT1R063A0075 (Ø63mm, 75mm Stroke)

This Camozzi Series 63 pneumatic cylinder, conforming to ISO 15552 standards (formerly DIN/ISO 6431 / VDMA 24562), is a single-acting, front spring version with a Ø63 mm bore and a 75 mm stroke length. It features a round tube design, a standard magnetic piston, and rear cushioning. The piston rod has a male thread, and the cylinder operates within a wide temperature range, typically between -20°C and +80°C. The Camozzi Series 63 ensures high performance and versatility, with reduced weight and noise levels, along with precise, adjustable pneumatic and mechanical cushioning.

Key Features

• Operation: Single-acting, front spring
• Rod Versions: Male rod thread
• Series: Camozzi Series 63 (ISO 15552)
• Stroke: 75 mm
• Construction: Standard with rod nut
• Design: Round tube
• Version: Standard, magnetic (with built-in magnetic piston)
• Cushioning: Rear cushioning
• Bore: 63 mm
• Temperature Range: Between -20°C and +80°C
