Cylinder - CDQ2KB63TF-25DZ

SMC CDQ2B63-25DMZ Compact Pneumatic Cylinder (2 pieces)

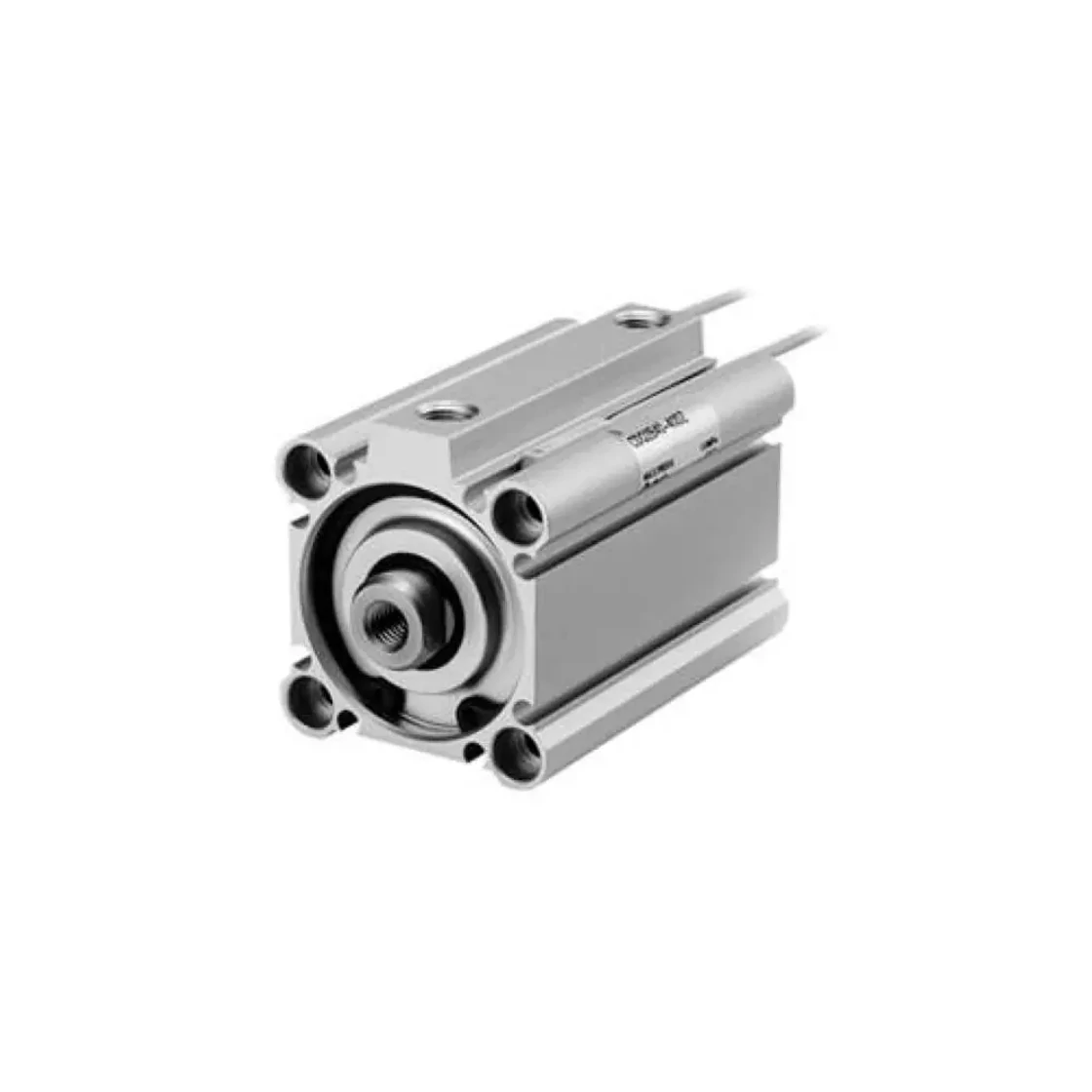

This SMC CDQ2B63-25DMZ compact pneumatic cylinder is a Ø63 mm bore unit with a 25 mm stroke, featuring a built-in magnet and a male threaded rod end. Its design allows for auto switch mounting in the grooves (though no switch is included with this specification), and it offers easy connection with G-type port threads. This order includes two pieces of the cylinder.

Key Features

• Type: Compact pneumatic cylinder
• Magnet: D (Built-in)
• Mounting: B (Through Hole [Standard 12 through 63 Bore])
• Bore Size: Ø63 mm
• Port Thread Type: TF (G)
• Stroke: 25 mm
• Body Option: M (Rod End Male Thread)
• Auto Switch Groove: Z (Auto Switch Mounting Grooves)
• Auto Switch: No Switch (for this specification)
• Lead Wire/Connector: 0.5 m or None in the Case of No Switch
• Number: 2 pieces
• Rod End Options: None
