Cylinder - RT/57240/M/160

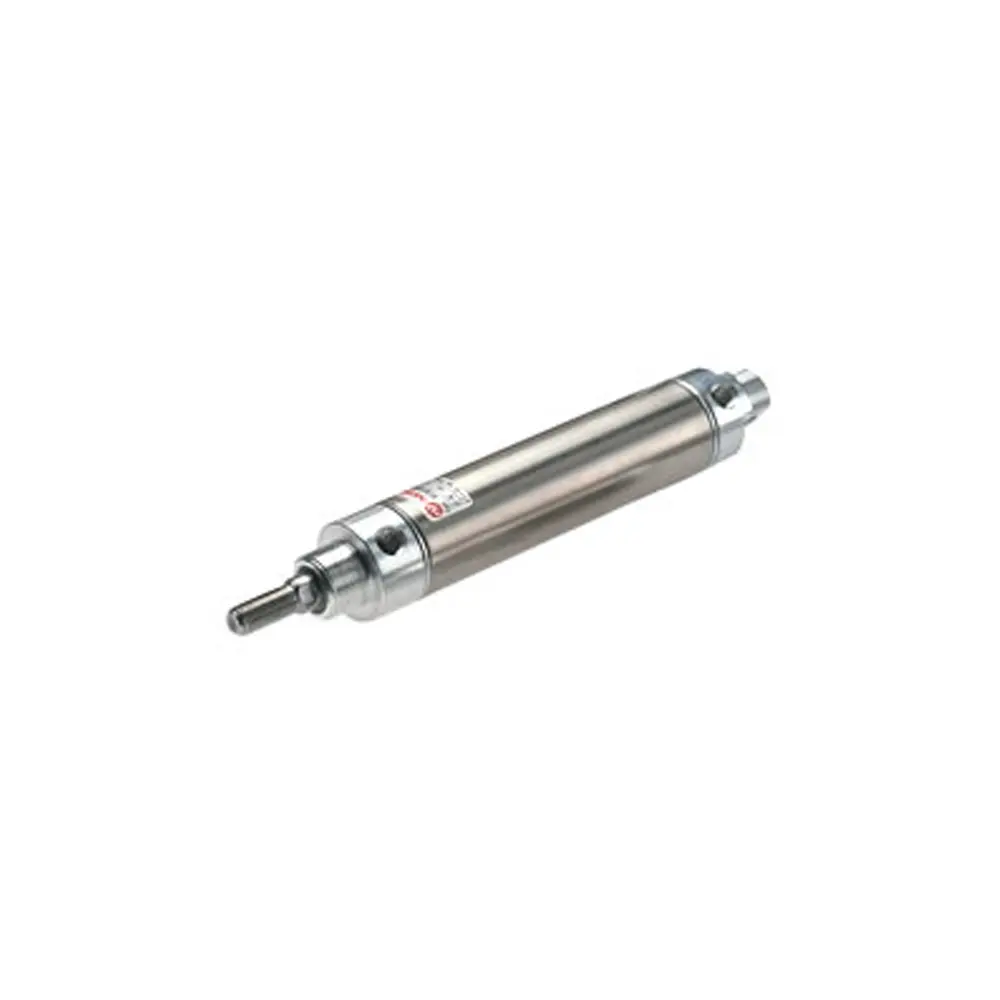

IMI Norgren Roundline Double Acting Cylinder, Rc1/8, Ø40mm, 160mm Stroke

This IMI Norgren Roundline series double acting pneumatic cylinder offers excellent performance in a compact size. It provides 20% space savings over the basic length of a corresponding ISO/VDMA cylinder. Featuring low friction, long-life seals and a high-strength, double-crimped end cap design, it ensures reliability and durability. The standard magnetic piston offers full control system versatility.

Key Features and Benefits

• Space-Saving: 20% space savings over the basic length of corresponding ISO/VDMA cylinders.
• Long Life: Features low friction, long-life seals.
• Robust Design: High-strength, double-crimped end cap design.
• Control Versatility: Equipped with a standard magnetic piston.
• Quality Materials: Stainless steel barrel and piston rod.

Technical Details

• Medium: Compressed air
• Port Size: Rc1/8
• Operation: Double acting
• Stroke Length: 160 mm
• Cylinder Diameter: 40 mm
• Operating Temperature: -10 ... 80 °C (14 ... 176 °F)
• Operating Pressure: 1 ... 10 bar (15 ... 145 psi)
• Cushioning: Buffer cushioning
• Magnetic/Non-magnetic: Magnetic
• Theoretical Force: 754 N
• Materials - Barrel: Stainless steel (austenitic)
• Materials - Piston Head Seals: Nitrile rubber
• Materials - Piston Rod: Stainless steel (martensitic)
• Dimensions - Height: 41.5 mm
• Dimensions - Length: 289 mm
• Dimensions - Width: 41.5 mm
• Weight: 1.61 kg
• Country of Origin: Czechia
• Range: RT/57200/M
• Series: Roundline
• Brand: IMI Norgren
