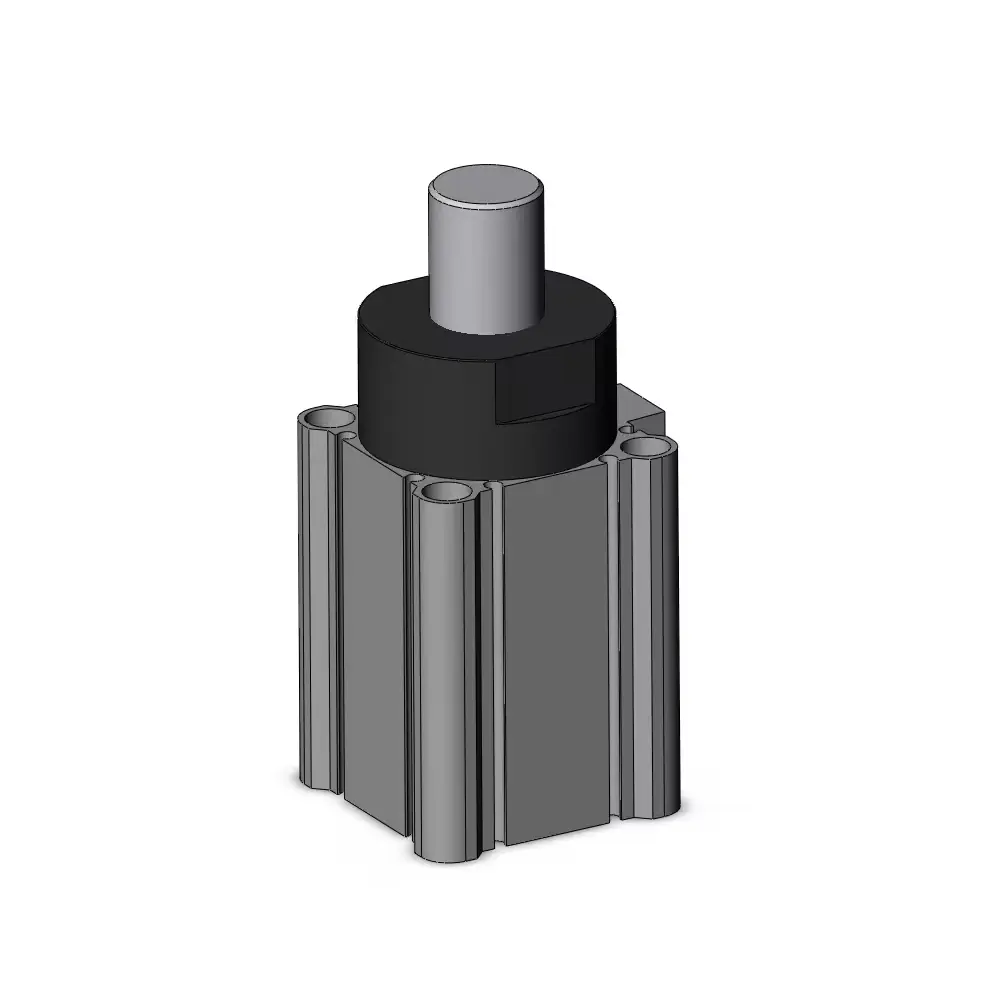

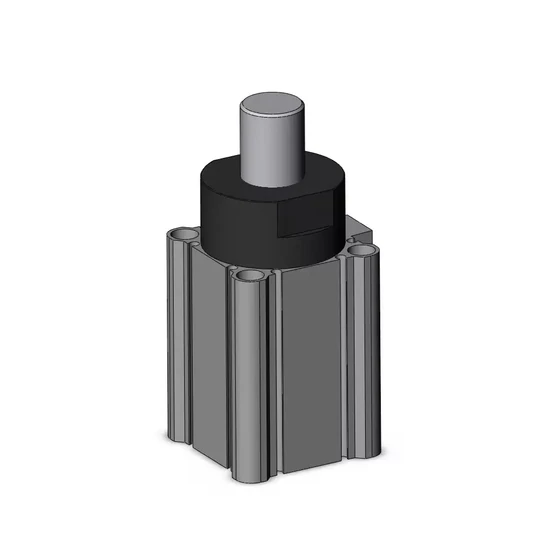

Cylinder - RSDQB50TF-30DRZ

SMC RSQ Series Fixed-Height Stopper Cylinder

The SMC RSQ series is a fixed-height stopper cylinder known for its proven endurance and low breakaway characteristics. This cylinder is an ideal choice for applications where workpieces need to be stopped at a specific height. The series is available in both double-acting and single-acting versions, covers a wide range of bore sizes and stroke lengths, and is auto switch capable.

Key Features

• Type: Fixed height stopper cylinder
• Operation: Double acting and single acting versions available
• Bore Sizes: 12 mm to 50 mm
• Stroke Range: 10 mm to 30 mm
• Compatibility: Auto switch capable (can be used with sensors)

Other SMC Stopper Cylinders:

• RSG Series: An adjustable mounting height stopper cylinder. Its height can be raised or lowered according to the distance required to stop the workpiece.
• RSH Heavy-Duty Stopper Cylinder: Specifically designed for use on conveyor lines or other applications requiring an external stopping device.
